G1

  • 1L/min Mini Vacuum Pump for Gas Analysis and Physiotherapy Small Air Pump
  • 1L/min Mini Vacuum Pump for Gas Analysis and Physiotherapy Small Air Pump
1L/min Mini Vacuum Pump for Gas Analysis and Physiotherapy Small Air Pump1L/min Mini Vacuum Pump for Gas Analysis and Physiotherapy Small Air Pump

1L/min Mini Vacuum Pump for Gas Analysis and Physiotherapy Small Air Pump

  • Model:G1
  • Air flow: 1L/min
  • Motor type: BLDC
  • Voltage: 12V/24V
  • Product description: G1 micro diaphragm vacuum pump is simply designed according to the principle of volume pump. It is to control the inlet and exit of the diaphragm, forming a power-driven rear drive mechanism to promot
  • INQUIRY   EMAIL

Product Details

Product Name:micro diaphragm pump

Product Model:G1

Applications:

Medical usage:Gas transmission, applied to medical equipment

Factory usage:Vacuum adsorption, used in industrial equipment

Environmental usage:Gas sampling, used in environmental protection equipment

Beauty usage: Applied to beauty/physiotherapy equipment

Product features:

1.Maintenance-free ,Stable and adjustable speed   2.Accurate repeatability

3.Dry-running,self-priming                                   4.Long lifetime , well sealed

Datasheet:

Air parameter

Model

Air flow

Negative pressure

Positive pressure

Motor

Voltage

G1

1L/min

-0.053MPa

0.07MPa

BLDC

12V/24V


Motor

BLDC

Lifetime

8000 hrs

Voltage

12V/24V

Power

1.9/2.4W

Noise level

<55dB

Usage

Air

Net Weight

60g

Dimensions

35.5x22x36.5mm

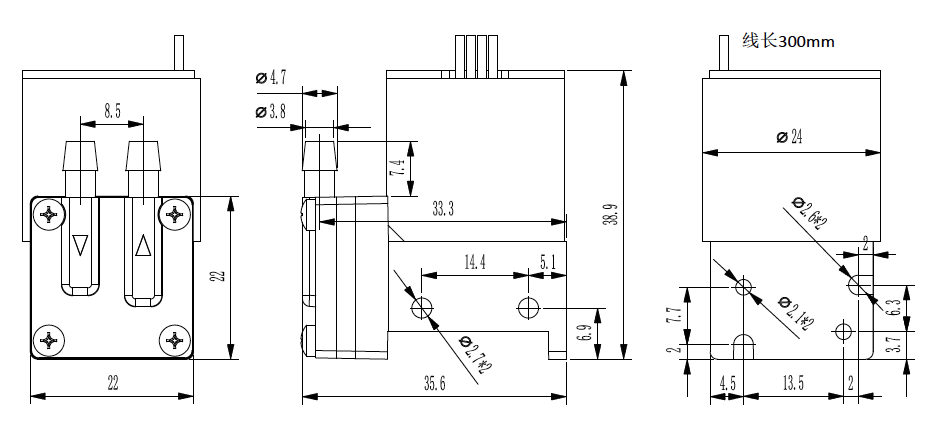

Installing drawing:Unit(mm)
