G4

  • 3-4.2L/min High negative pressure single head air vacuum pump
  • 3-4.2L/min High negative pressure single head air vacuum pump
  • 3-4.2L/min High negative pressure single head air vacuum pump
  • 3-4.2L/min High negative pressure single head air vacuum pump
3-4.2L/min High negative pressure single head air vacuum pump 3-4.2L/min High negative pressure single head air vacuum pump 3-4.2L/min High negative pressure single head air vacuum pump 3-4.2L/min High negative pressure single head air vacuum pump

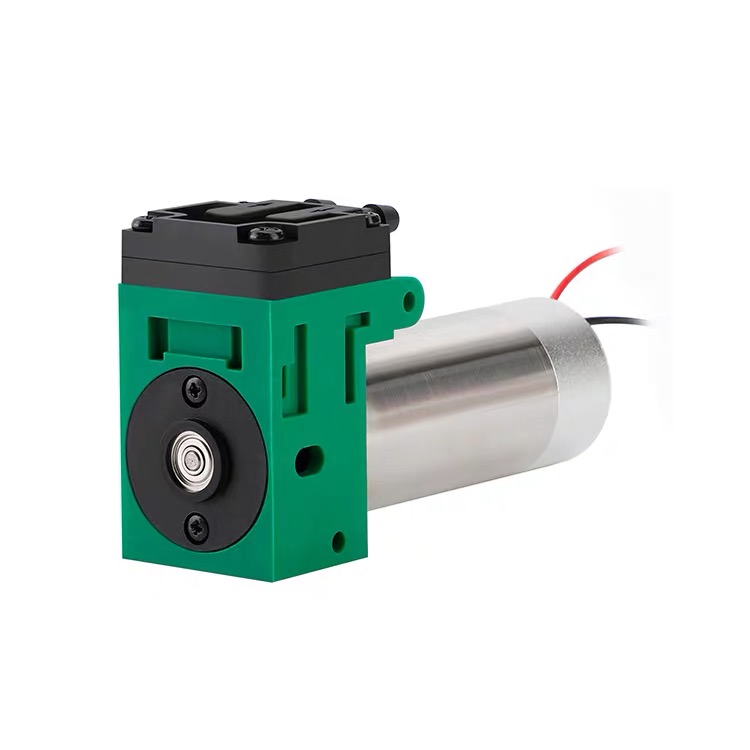

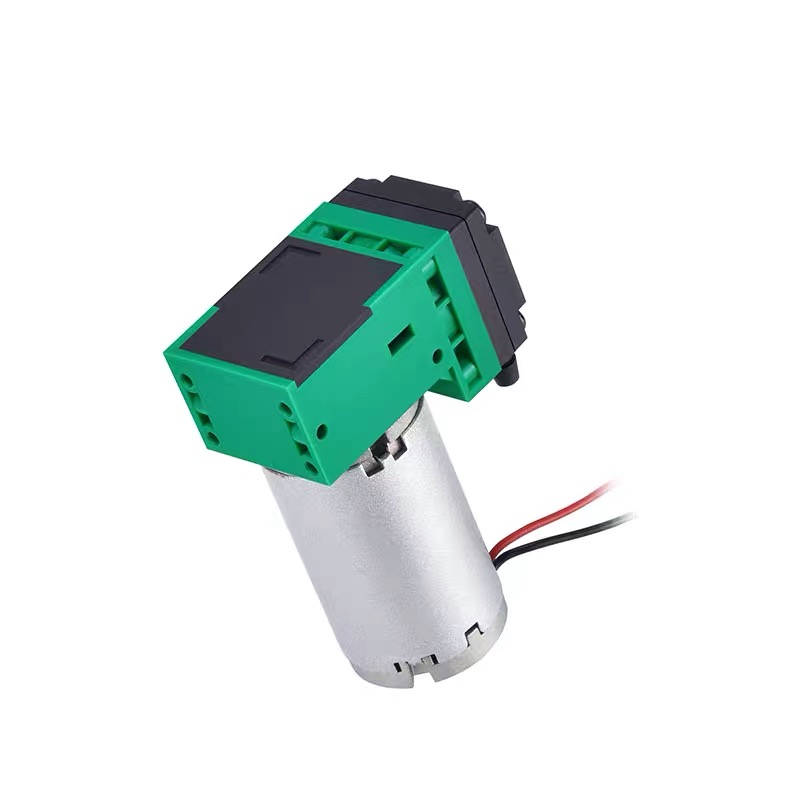

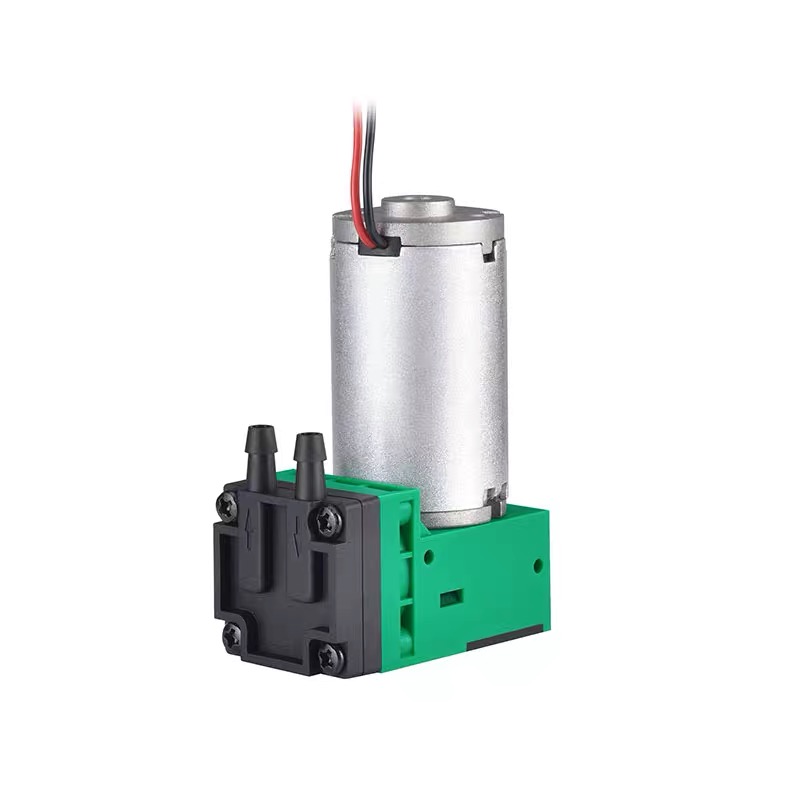

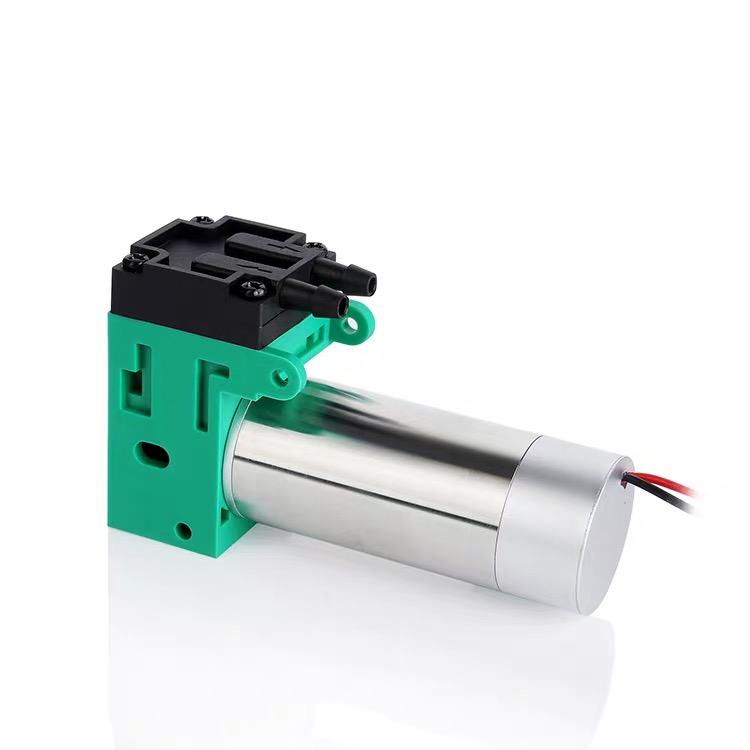

3-4.2L/min High negative pressure single head air vacuum pump

  • Model:G4
  • Air flow: 3-4.2L/min
  • Motor type: DC/BLDC
  • Voltage: 12V/24V
  • Product description: G4 micro diaphragm pump is simply designed according to the principle of volume pump. It is to control the inlet and exit of the diaphragm, forming a power-driven rear drive mechanism to promote the p
  • INQUIRY   EMAIL

Product Details

Product Name:micro diaphragm pump

Product Model:G4

Applications:

Medical usage:Gas transmission, applied to medical equipment

Factory usage:Vacuum adsorption, used in industrial equipment

Environmental usage:Gas sampling, used in environmental protection equipment

Beauty usage: Applied to beauty/physiotherapy equipment

Product features:

1.Maintenance-free ,Stable and adjustable speed   2.Accurate repeatability

3.Dry-running,self-priming                                   4.Long lifetime , well sealed

Datasheet:

Air parameter

Model

Voltage/ Power

Air flow

Negative pressure

Motor

Lifetime

G4DC/BK1272

12V/4W

4.2L/min

-0.072Mpa

DC,BLDC

2500hrs,8000hrs

G4DC/BK2472

24V/4W

G4DC/BK1263

12V/4W

3L/min

-0.063Mpa

DC,BLDC

2500hrs,8000hrs

G4DC/BK2463

24V/4W

G4DC/BK12130

12V/4W

4L/min

0..13MPa

DC,BLDC

2500hrs,8000hrs

G4DC/BK24130

24V/4W

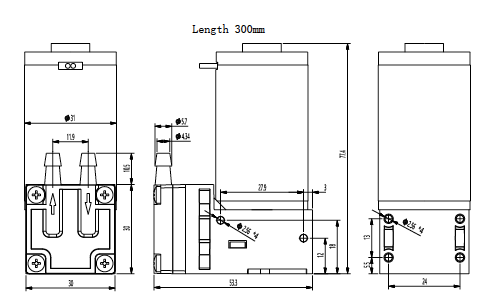

Installing drawing:Unit(mm)
