2L/min Micro diaphragm pump high pressure self priming water pumps micro diaphragm vacuum pump

  • Air flow:2L/min
  • Liquid flow: 0.8L/min
  • Motor type: DC/BLDC
  • Voltage: 12V/24V
  • Product description: L08 micro diaphragm pump is simply designed according to the principle of volume pump. It is to control the inlet and exit of the diaphragm, forming a power-driven rear drive mechanism to promote the
  • INQUIRY   EMAIL

Product Details

Product Name:micro diaphragm pump

Product Model:L08

Applications:

Medical usage:For liquid transfer,sampling,dispensing

Factory usage:For liquid dispensing

Environmental usage:For transferring and sampling sewage

Chemical engineering usage:Sample analysis,dispensing liquid

Ink Printer:For transferring ink,cleaning pipe line

Laboratory usage:For liquid transfer,sampling

Product features:

1.Maintenance-free ,Stable and adjustable speed   2.Accurate repeatability

3.Dry-running,self-priming                                   4.Long lifetime , well sealed

Datasheet:

Air parameter

Model

Air flow

Negative pressure

Positive pressure

Motor

Voltage

L08

2L/min

-0.05MPa

0.08MPa

DC,BLDC

12V, 24V

Liquid parameter

Model

Liquid flow

Suction head

Pressure head

Motor

Voltage

L08

800ml/min

3m

10m

DC,BLDC

12V, 24V


Motor

Brush DC (DC)

Brushless DC (BLDC)

Temp

50℃

50℃

Noise level

<52dB

<50dB

Motor life

2500hrs

8000hrs

Work temp

040℃

Relative humidity

<80%

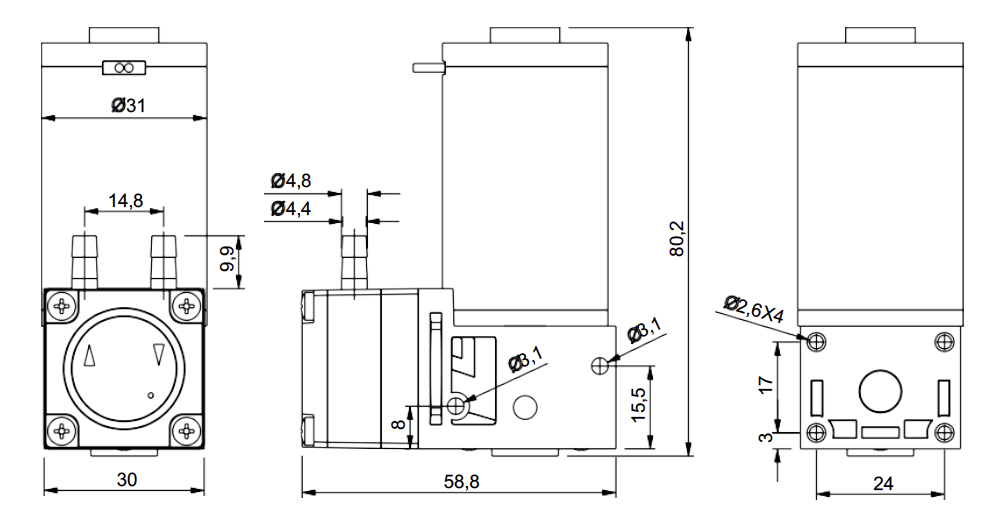

Installing drawing:Unit(mm)
