  • Model:BT-S 100S
  • Flow rate:0.00011-720 mL/min
  • Speed accuracy: 0.5%
  • Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz
  • Product description: Peristaltic pump consists of three parts: driver, pump head and tube. The main competitive advantage of peristaltic pump is that the fluid is isolated in the pump tube, the pump tube can be replaced q
  • INQUIRY   EMAIL

Product Details

Product Name:Micro Peristaltic Pump

Product Model:BT-S 100S

Flow rate:0.00011-720 mL/min
Speed accuracy: 0.5%
Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz

Applications:

Medical usage:For liquid transfer,sampling,dispensing

Factory usage:For liquid dispensing

Environmental usage:For transferring and sampling sewage

Chemical engineering usage:Sample analysis,dispensing liquid

Ink Printer:For transferring ink,cleaning pipe line

Laboratory usage:For liquid transfer,sampling

Food and Beverage:For dispensing,filling

Family Usage:For liquid dispensing

Product Functions And Features:

• LCD displays rotating speed and working mode.

• Membrane keypad.

• Reversible direction, start/stop control and adjustable speed.

• Time dispense mode: automatically dispense by setting the duration for each dose, lag time between doses and number of cycles.

• 0.5% high precision rotating speed control with 0.1 rpm speed resolution when speed is between 0-100 rpm, 1 rpm speed resolution when speed is between 100-600 rpm.

• External logic level signal can control start/stop, direction and dispense functions; external analog signal can adjust the rotating speed. Signal is optically isolated.

• With RS485 MODBUS interface, easy to communicate with external device.

• Internal double-layer isolation structure; circuit board with conformal coating makes the pump dust-proof and moisture proof.

• Anti-electromagnetic interference feature, wide input voltage range for complex power environment.

• Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents.

Specifications

• Flow range: 0.00011-720 mL/min

• Speed range: 0.1-150 rpm

• Speed resolution: 0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution

• Speed accuracy: 0.5%

• Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz

• Power consumption: < 40W

• External logic level control signal: 5V, 12V (standard), 24V (optional).

• External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)

• Communication interface: RS485 MODBUS

• Operating condition: Temperature 0~40°C; Relative humidity <80%

• IP grade: IP31

• Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)

• Weight: 4.7 kg (10.4 lbs)

JWP100S Suitable Pump Heads and Tubing, Flow Parameters

Drive type

Pump head

Channel

Tubing size (mm)

Flow rate per channel (mL/min)

BT-S 100S
(304SS case)

DG6-1 (6rollers)

1

Wall:0.8-1, ID:≤2.4

0.00016-26

DG10-1 (10rollers)

1

Wall:0.8-1, ID:≤2.4

0.00011-20

DG6-2 (6rollers)

2

Wall:0.8-1, ID:≤2.4

0.00016-26

DG10-2 (10rollers)

2

Wall:0.8-1, ID:≤2.4

0.00011-20

DG6-4 (6rollers)

4

Wall:0.8-1, ID:≤2.4

0.00016-26

DG10-4 (10rollers)

4

Wall:0.8-1, ID:≤2.4

0.00011-20

DT10-18

1

13# 14# , Wall: 0.8-1, ID:≤3.17

0.0002-82

DT10-28

2

13# 14# , Wall: 0.8-1, ID:≤3.17

0.0002-82

DT10-48

4

13# 14# , Wall: 0.8-1, ID:≤3.17

0.0002-82

YZ15

1

13# 14# 16# 19# 25# 17#

0.006-420

YZ25

1

15# 24#

0.17-420

2 x YZ15

2

13# 14# 16# 19# 25# 17#

0.006-420

2 x YZ25

2

15# 24#

0.17-420

YT15

1

13# 14# 16# 19# 25# 17# 18#

0.006-570

YT25

1

15# 24# 35# 36#

0.17-720

2 x YT15

2

13# 14# 16# 19# 25# 17# 18#

0.006-570

2 x YT25

2

15# 24# 35# 36#

0.006-720

DT15-24

2

19# 16# 25# 17#

0.05-400

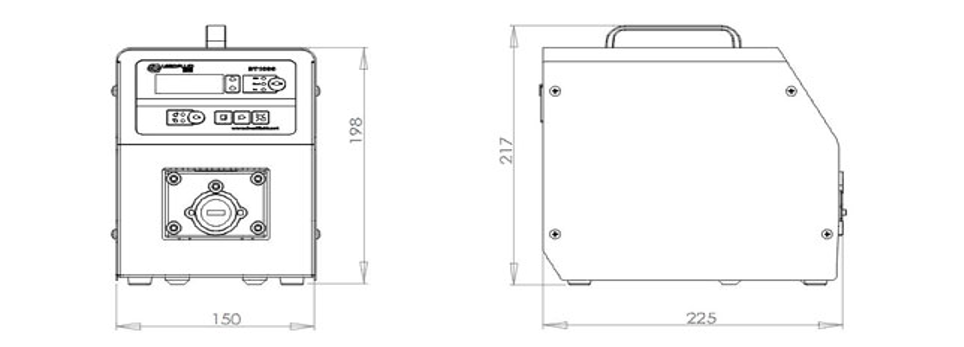

Installing drawing:(units:mm)
