320-500ml/min 5V DC Low Noise Electric Mini Diaphragm Air Vacuum Pump 320-500ml/min 5V DC Low Noise Electric Mini Diaphragm Air Vacuum Pump 320-500ml/min 5V DC Low Noise Electric Mini Diaphragm Air Vacuum Pump

320-500ml/min 5V DC Low Noise Electric Mini Diaphragm Air Vacuum Pump

  • Model:G05DC540
  • Air flow: 320-500ml/min
  • Motor type: DC
  • Voltage: 12V/24V
  • Product description: JWP24 micro diaphragm vacuum pump is simply designed according to the principle of volume pump. It is to control the inlet and exit of the diaphragm, forming a power-driven rear drive mechanism to pro
  • INQUIRY   EMAIL

Product Details

Product Name:micro diaphragm pump

Product Model:G05DC540

Applications:

Medical usage:Gas transmission, applied to medical equipment

Factory usage:Vacuum adsorption, used in industrial equipment

Environmental usage:Gas sampling, used in environmental protection equipment

Beauty usage: Applied to beauty/physiotherapy equipment

Product features:

1.Maintenance-free ,Stable and adjustable speed   2.Accurate repeatability

3.Dry-running,self-priming                                   4.Long lifetime , well sealed

Datasheet:

Air parameter

Model

Air flow

Negative pressure

Positive pressure

Motor

Voltage

G05DC540

320-500ml/min

-0.04MPa

0.055MPa

DC

3.5V-5V


Motor

DC

Lifetime

200 hrs

Voltage

3.5V-5V

Power

0.5W

Noise level

<55dB

Usage

Air

Net Weight

16g

Dimensions

25.8x17x33.3mm

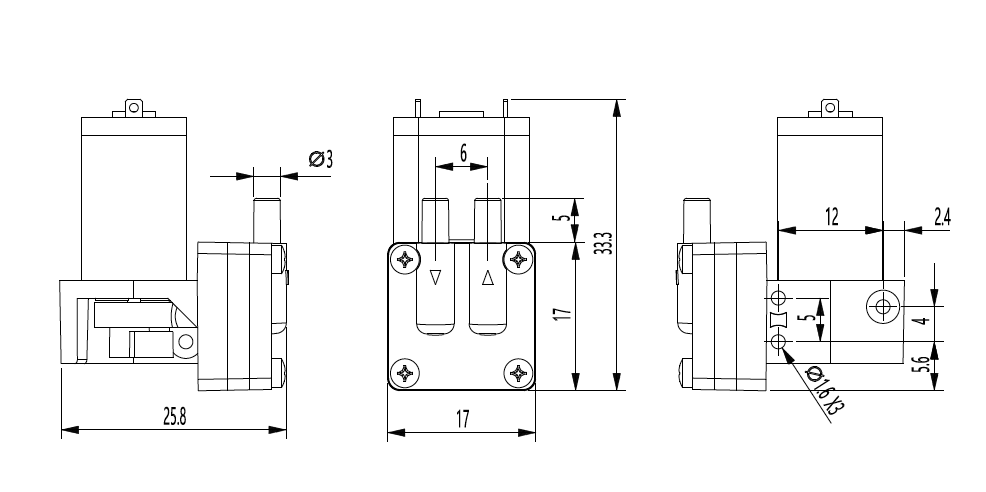

Installing drawing:Unit(mm)
