Product Details

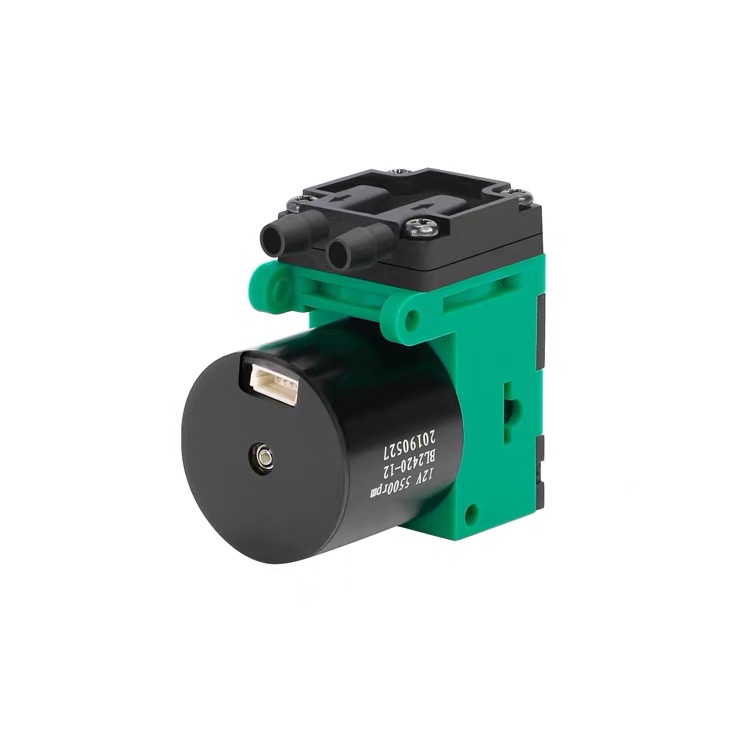

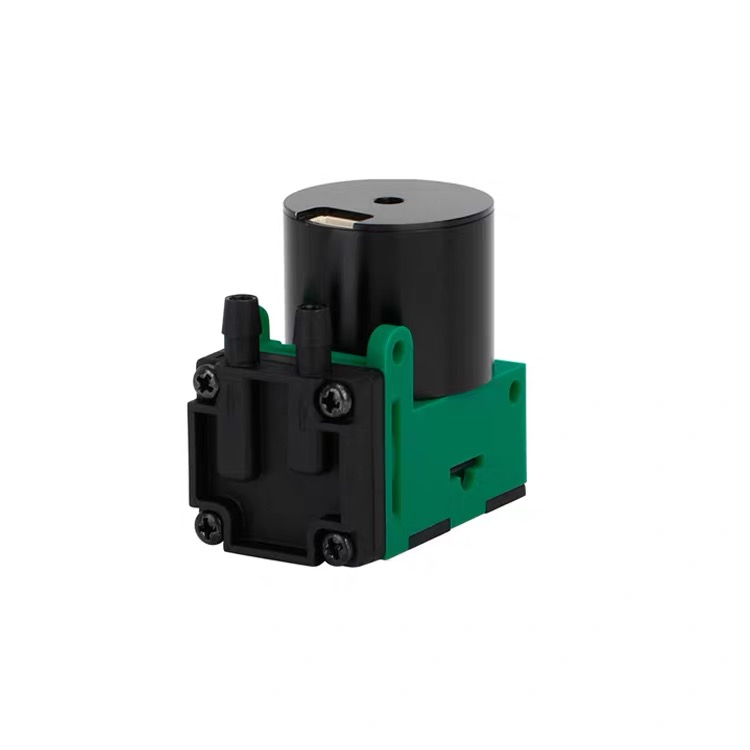

Product Name：micro diaphragm pump
Product Model：G2
Applications：
Medical usage：Gas transmission, applied to medical equipment
Factory usage：Vacuum adsorption, used in industrial equipment
Environmental usage：Gas sampling, used in environmental protection equipment
Beauty usage: Applied to beauty/physiotherapy equipment
Product features：
1.Maintenance-free ,Stable and adjustable speed 2.Accurate repeatability
3.Dry-running,self-priming 4.Long lifetime , well sealed
Datasheet：
Air parameter
|
Model |
Air flow |
Negative pressure |
Positive pressure |
Motor |
Voltage |
|
G2 |
1.5L/min |
-0.072MPa |
0.12MPa |
BLDC |
12V/24V |
Motor
BLDC
Lifetime
8000 hrs
Voltage
12V/24V
Power
2.1/2.6W
Noise level
<55dB
Usage
Air
Net Weight
40g
Dimensions
38x22x36.8mm

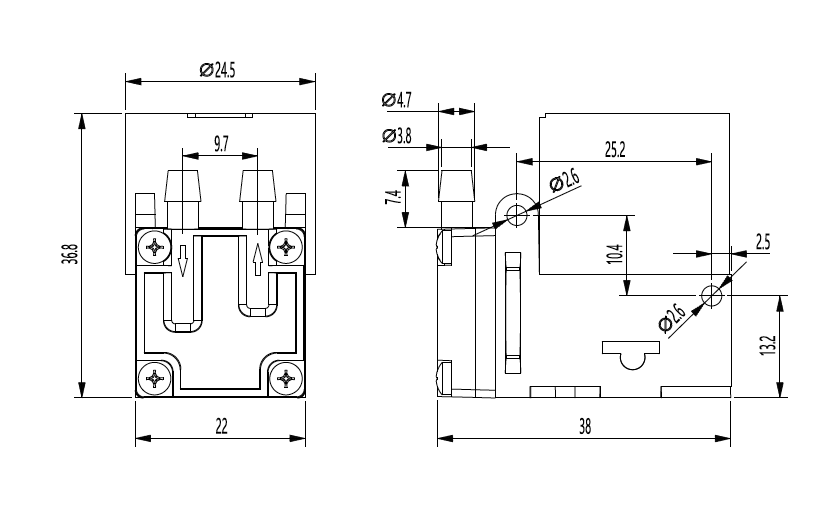

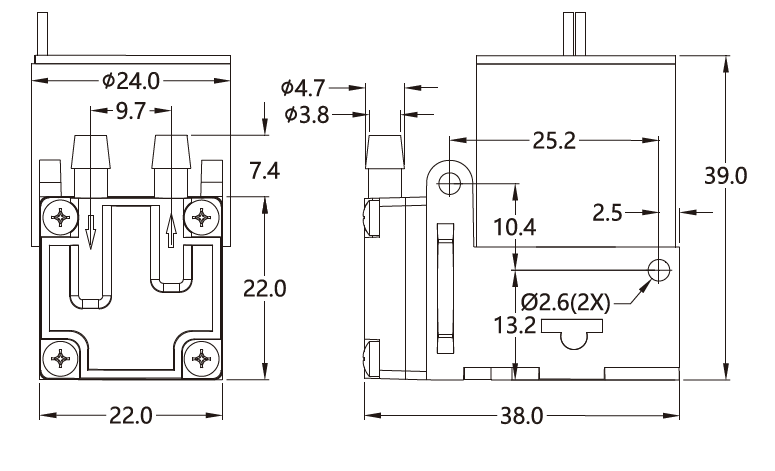

Installing drawing：Unit（mm）
