G05

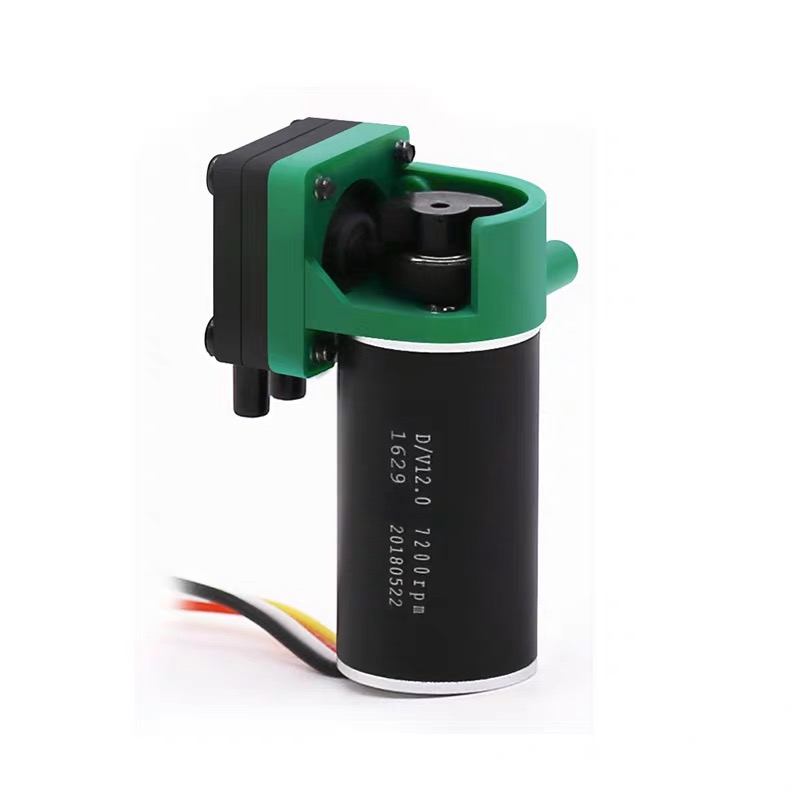

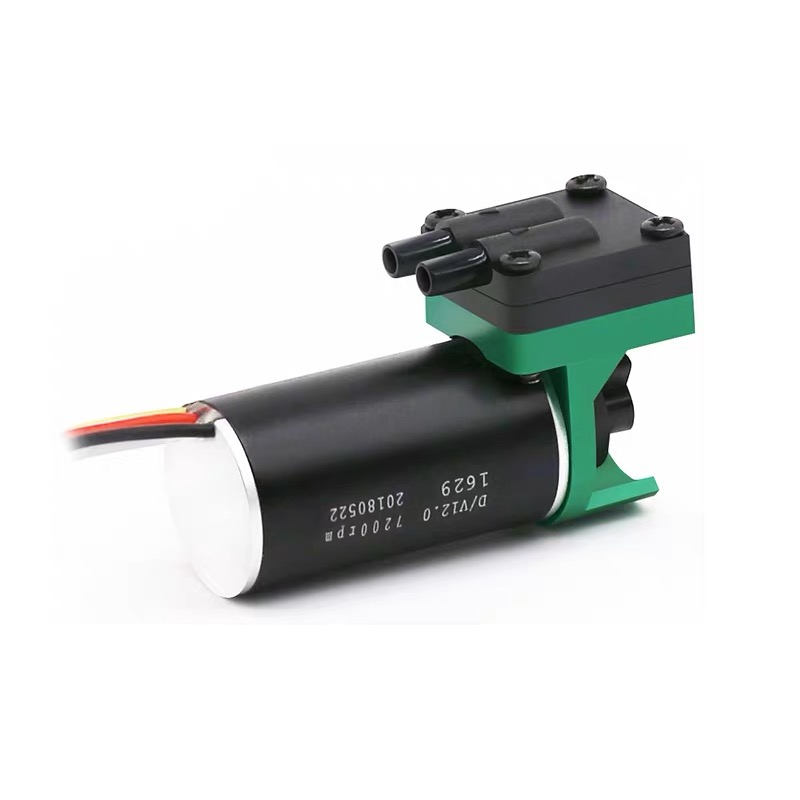

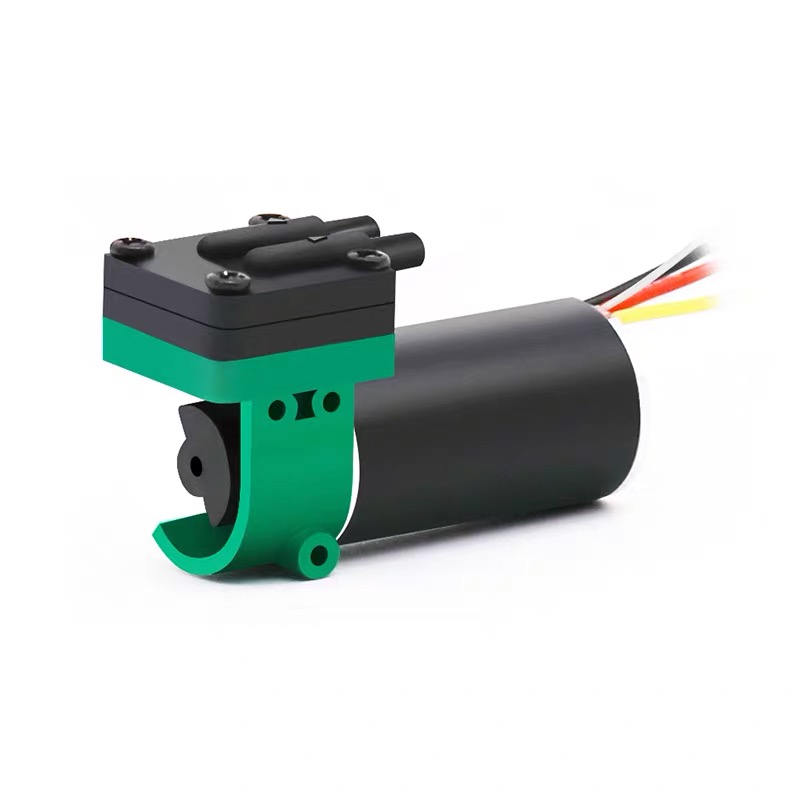

320-500ml/min 5V Brushless DC Air Pump Low Noise Electric Mini Vacuum Pump

320-500ml/min 5V Brushless DC Air Pump Low Noise Electric Mini Vacuum Pump

Model：G05BK5/1240S
Air flow: 320-500ml/min
Motor type: BLDC
Voltage: 5V/12V
Product description: G05BK5/1240S micro diaphragm vacuum pump is simply designed according to the principle of volume pump. It is to control the inlet and exit of the diaphragm, forming a power-driven rear drive mechanism
INQUIRY EMAIL

Product Details

Product Name：micro diaphragm pump

Product Model：G05BK5/1240S

Applications：

Medical usage：Gas transmission, applied to medical equipment

Factory usage：Vacuum adsorption, used in industrial equipment

Environmental usage：Gas sampling, used in environmental protection equipment

Beauty usage: Applied to beauty/physiotherapy equipment

Product features：

1.Maintenance-free ,Stable and adjustable speed 2.Accurate repeatability

3.Dry-running,self-priming 4.Long lifetime , well sealed

Datasheet：

Air parameter

Model

Air flow

Negative pressure

Positive pressure

Motor

Voltage

G05BK5/1240S

320-500ml/min

-0.04MPa

0.055MPa

BLDC

5V/12V
