Micro Peristaltic Pump

  • 0-96ml/min Micro Peristaltic Pump 6/12/24 Volt DC Liquid Dosing Pump for Aquarium Lab Analytical Small Peristaltic Pump
  • 0-96ml/min Micro Peristaltic Pump 6/12/24 Volt DC Liquid Dosing Pump for Aquarium Lab Analytical Small Peristaltic Pump
  • 0-96ml/min Micro Peristaltic Pump 6/12/24 Volt DC Liquid Dosing Pump for Aquarium Lab Analytical Small Peristaltic Pump
0-96ml/min Micro Peristaltic Pump 6/12/24 Volt DC Liquid Dosing Pump for Aquarium Lab Analytical Small Peristaltic Pump0-96ml/min Micro Peristaltic Pump 6/12/24 Volt DC Liquid Dosing Pump for Aquarium Lab Analytical Small Peristaltic Pump0-96ml/min Micro Peristaltic Pump 6/12/24 Volt DC Liquid Dosing Pump for Aquarium Lab Analytical Small Peristaltic Pump

0-96ml/min Micro Peristaltic Pump 6/12/24 Volt DC Liquid Dosing Pump for Aquarium Lab Analytical Small Peristaltic Pump

  • Model:JWP01-DK
  • Flow rate:0-96ml/min
  • Motor type:Brush DC
  • Voltage:6V/12V/24V
  • Product description: Micro peristaltic pump consists of three parts: driver motor, pump head and tube. The main competitive advantage is that the fluid is isolated in pump tube, the pump tube can be replaced quickly, posi
  • INQUIRY   EMAIL

Product Details

Product Name:Micro Peristaltic Pump

Product Model:JWP01-DK

Applications:

Detergent equipment : such as washing machine, dishwasher

Analytical instrument: analytical testing instrument sample

Printing equipment: ink

conveying machinery: such as beverage machine

Kitchen equipment  Laundry equipment  Car washing equipment  Analysis equipment

Specification

Motor:DC       Max.flow rate:96ml/min

Positive pressure:0.2 Mpa

Negative pressure:-0.07 MPa

Noise:<49dB      Lifetime:800hrs

Environment:0~40℃

Relative humidity: <80%

Flow range

Silicone tube lifetime: 200hrs (standard )

PharMed BPT tube lifetime:1000hrs (Customized)

Number

Tube

Flow rate

DC motorS

DC motor( B)

1

1*3

14ml/min

12ml/min

2

2*4

56ml/min

53ml/min

3

3*5

96ml/min

83ml/min

Remark“S” Silicone tube   “B”BPT tube

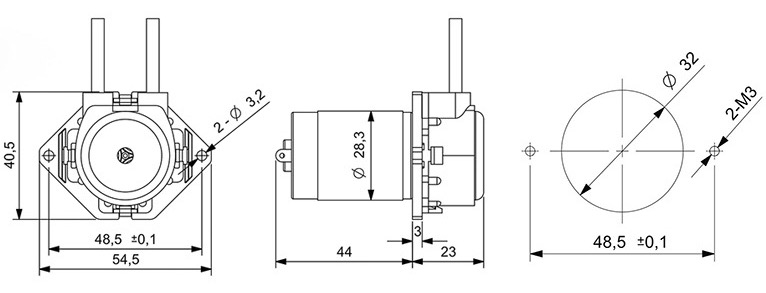

Installing drawing:(Units mm)
