Micro Peristaltic Pump

  • JWPS01 0.05-200ml/min Mini Peristaltic Pump  Silent Pump  Self-Priming Pump  High Precision Peristaltic Pump  Stepper Motor Peristaltic Pump
JWPS01 0.05-200ml/min Mini Peristaltic Pump  Silent Pump  Self-Priming Pump  High Precision Peristaltic Pump  Stepper Motor Peristaltic Pump

JWPS01 0.05-200ml/min Mini Peristaltic Pump Silent Pump Self-Priming Pump High Precision Peristaltic Pump Stepper Motor Peristaltic Pump

  • Model:JWPS01
  • Voltage::3-50V
  • Flow rate:0.05-200ml/min
  • Motor:STEP motor
  • Product description: JWPS01 Mini Peristaltic Pump Silent 0.05-200ml/min Pump Self-Priming Pump High Precision Peristaltic Pump Stepper Motor Peristaltic Pump
  • INQUIRY   EMAIL

Product name: JWPS01 0.05-200ml/min self-priming peristaltic pump

Product parameters:

Motor type: two-phase four-wire 42 stepper motor (driver drive, can not be directly driven by the power supply, customer configures driver according to your needs.)

Maximum power: 20W

Minimum power: 5W

Standard pipe size: 3.2*6.4mm

Minimum flow rate: Determined by the speed of the stepper motor, the factors affecting the flow rate: pipe diameter and motor speed.

Stepper motor speed: <500rpm (The stepper motor speed is determined by the control circuit)

Maximum flow rate: 200ml/min

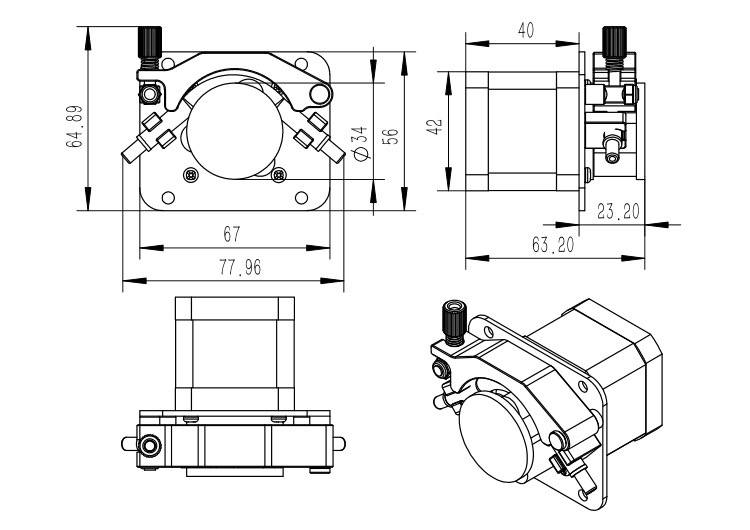

Size: 63.2*77.96*64.89mm

Weight: 420g

Flow Rate:

Number Tube Size Flow Rate
1 0.8*4mm 0.05-13ml/min
2 1.6*4.8mm 0.15-52ml/min
3 2.4*5.6mm 0.35-119ml/min
4 3.2*6.4mm 0.5-200ml/min
