Micro Peristaltic Pump

  •  0-10ml/min Mini peristaltic pump Micro flow Biochemical analysis pharmaceutical pump  12V DC small pump  Mini self-priming pump
  •  0-10ml/min Mini peristaltic pump Micro flow Biochemical analysis pharmaceutical pump  12V DC small pump  Mini self-priming pump
  •  0-10ml/min Mini peristaltic pump Micro flow Biochemical analysis pharmaceutical pump  12V DC small pump  Mini self-priming pump
 0-10ml/min Mini peristaltic pump Micro flow Biochemical analysis pharmaceutical pump  12V DC small pump  Mini self-priming pump 0-10ml/min Mini peristaltic pump Micro flow Biochemical analysis pharmaceutical pump  12V DC small pump  Mini self-priming pump 0-10ml/min Mini peristaltic pump Micro flow Biochemical analysis pharmaceutical pump  12V DC small pump  Mini self-priming pump

0-10ml/min Mini peristaltic pump Micro flow Biochemical analysis pharmaceutical pump 12V DC small pump Mini self-priming pump

  • Model:AB19
  • Voltage:DC 12V
  • Flow:0-10ml/min
  • Motor:GDC
  • Product description: Mini peristaltic pump Micro flow 0-10ml/min Biochemical analysis pharmaceutical pump 12V DC small pump Mini self-priming pump
  • INQUIRY   EMAIL

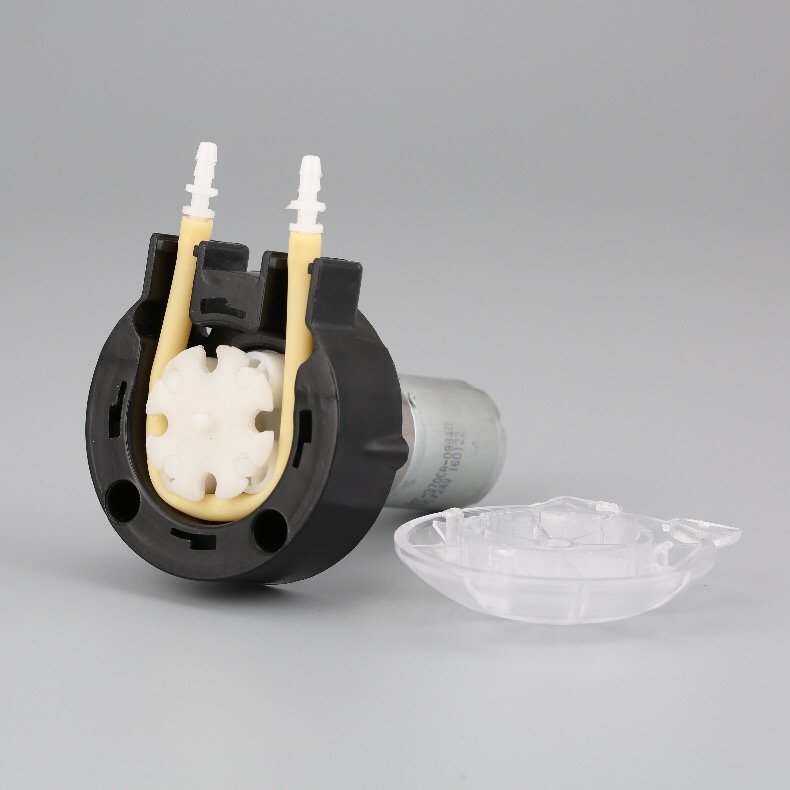

Product name: AB19 DC deceleration peristaltic pump

Application :

AB19 DC peristaltic pump is widely used in experiments, biochemical analysis, pharmacy, fine chemicals, bioengineering, pharmaceutical filling, food, paper industry, ceramics, water treatment, environmental protection, powder and other fields.

Product parameters:

1. Transparent cover

2. Rotating bayonet structure

3. The number of rollers can be customized

4. Replace the motor as needed

5. Reserve the geared motor mounting holes and stepper motor mounting holes

6. Applicable power supply: DC 12V

7. Flow range: 0-10ML/MIN (adjustable) can change different sizes of tubes

8. Working environment: temperature 0-40℃, relative humidity <80%

9. Speed range: 5 revolutions

10. Driver size (Φx H): diameter 25 x height 58 (mm)

11. Pump head size (Φx H): diameter 45 x height 23 (mm)

12. Equipped with pump tube (IDxOD): inner diameter 2.5 x outer diameter 4.6 (mm) Applicable pipe diameter: outer diameter less than 7mm (tube can be replaced as needed)

13. Pump head weight: 0.05kg (excluding motor)

14.Weight: 0.2 Kg

15. The pump head is designed for easy disassembly, which is easy to clean and maintain
