G4-2

  • 3.8-7.5L/min Miniature Diaphragm Pump Vacuum Pump Brushless Battery Operated Air Pump for Blood Pressure Gauges Bioprinting
  • 3.8-7.5L/min Miniature Diaphragm Pump Vacuum Pump Brushless Battery Operated Air Pump for Blood Pressure Gauges Bioprinting
  • 3.8-7.5L/min Miniature Diaphragm Pump Vacuum Pump Brushless Battery Operated Air Pump for Blood Pressure Gauges Bioprinting
  • 3.8-7.5L/min Miniature Diaphragm Pump Vacuum Pump Brushless Battery Operated Air Pump for Blood Pressure Gauges Bioprinting
3.8-7.5L/min Miniature Diaphragm Pump Vacuum Pump Brushless Battery Operated Air Pump for Blood Pressure Gauges Bioprinting3.8-7.5L/min Miniature Diaphragm Pump Vacuum Pump Brushless Battery Operated Air Pump for Blood Pressure Gauges Bioprinting3.8-7.5L/min Miniature Diaphragm Pump Vacuum Pump Brushless Battery Operated Air Pump for Blood Pressure Gauges Bioprinting3.8-7.5L/min Miniature Diaphragm Pump Vacuum Pump Brushless Battery Operated Air Pump for Blood Pressure Gauges Bioprinting

3.8-7.5L/min Miniature Diaphragm Pump Vacuum Pump Brushless Battery Operated Air Pump for Blood Pressure Gauges Bioprinting

  • Model:G4-2
  • Air flow: 3.8-7.5L/min
  • Motor type: DC/BLDC
  • Voltage: 12V/24V
  • Product description: Miniature Diaphragm Pump Vacuum Pump 3.8-7.5L/min Brushless Battery Operated Air Pump for Blood Pressure Gauges Bioprinting
  • INQUIRY   EMAIL

Product Details

Product Name:Micro Vacuum pump

Product Model:G4-2

Applications:

Medical usage:Gas transmission, applied to medical equipment

Factory usage:Vacuum adsorption, used in industrial equipment

Environmental usage:Gas sampling, used in environmental protection equipment

Beauty usage: Applied to beauty/physiotherapy equipment


Product features:

1.Maintenance-free ,Stable and adjustable speed   2.Accurate repeatability

3.Dry-running,self-priming                                   4.Long lifetime , well sealed

Model selection: parallel and serial options

Motor selection: brush DC and brushless DC two options

Lifetime: Brush DC: 2500 hours, Brushless DC: 8000 hours

Datasheet:

Air parameter

Model Serial Parallel Parallel
12V G4BK1290-2T G4BK1272-2T G4BK12130-2T
24V G4BK2490-2T
G4BK2472-2T G4BK24130-2T
Flow 3.8L/min 7.5L/min 7.5L/min
Vacuum -0.09Mpa -0.072Mpa --
Pressure -- -- 0.13Mpa
Power 5W 5W 5W
Noise <55dB <55dB <55dB
Humidity 0-95%RH 0-95%RH 0-95%RH

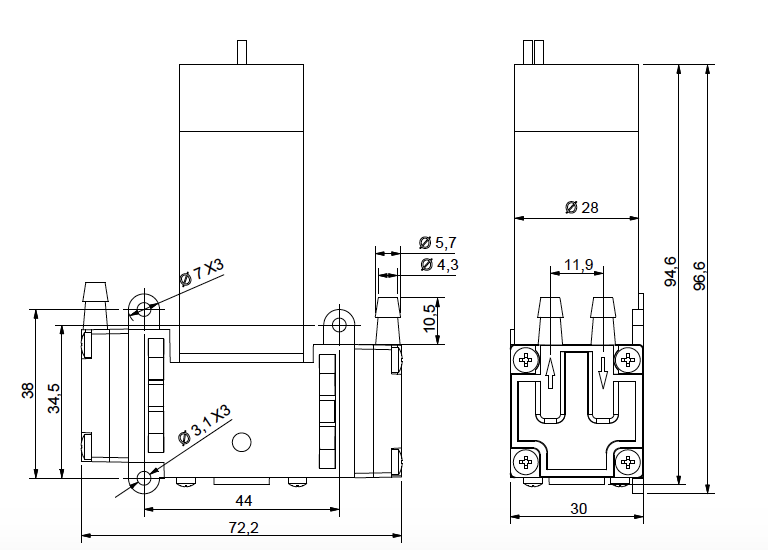

Installing drawing:Unit(mm)
