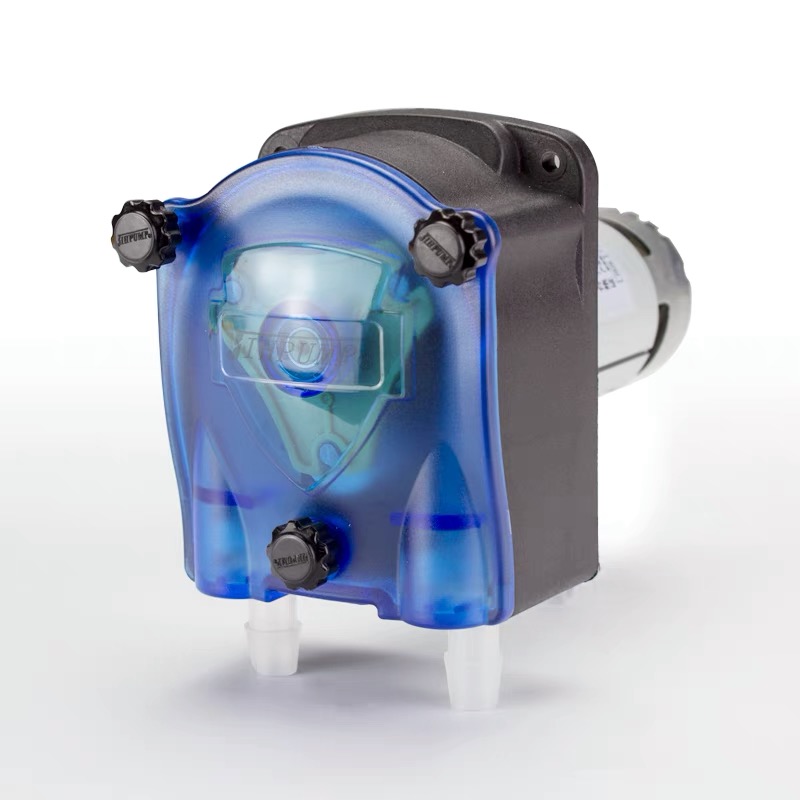

Micro Peristaltic Pump

565-3215ml/min Dosing Pump 12V/24V DIY Adjustable Peristaltic Dosing Head with Connector For Arduino Aquarium Lab Analytic 565-3215ml/min Dosing Pump 12V/24V DIY Adjustable Peristaltic Dosing Head wi

Model：683K series
Flow rate： 565-3215ml/min
Motor type：Brush DC
Voltage:12V/24V
Product description: Micro peristaltic pump consists of three parts: driver motor, pump head and tube. The main competitive advantage is that the fluid is isolated in pump tube, the pump tube can be replaced quickly, posi
INQUIRY EMAIL

Product Details

Product Name：Micro Peristaltic Pump

Product Model：683K

Applications：

Testing and research

l AutoAnalyzer

l Analytical chemistry experiments

l Carbon monoxide monitors

l Media dispensers

Food manufacturing and sales

l Liquid food fountains (ex. cheese sauce for nachos)

l Beverage dispensing

l Food-service Washing Machine fluid pump

Chemical handling

l Liquid food fountains (ex. cheese sauce for nachos)

l Beverage dispensing

l Food-service Washing Machine fluid pump

Chemical handling

l Printing, paint and pigments

l Pharmaceutical production

l Dosing systems for dishwasher and laundry chemicals

Product Features：

1.Maintenance-free ,positive inversion. 2.Ultra-silent,non-pollution

3.Accurate repeatability 4.Dry-running,self-priming

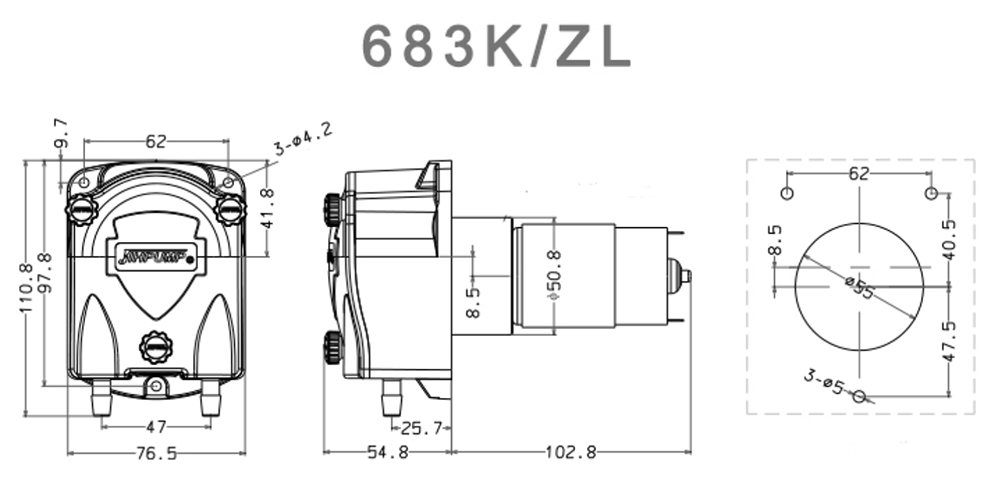

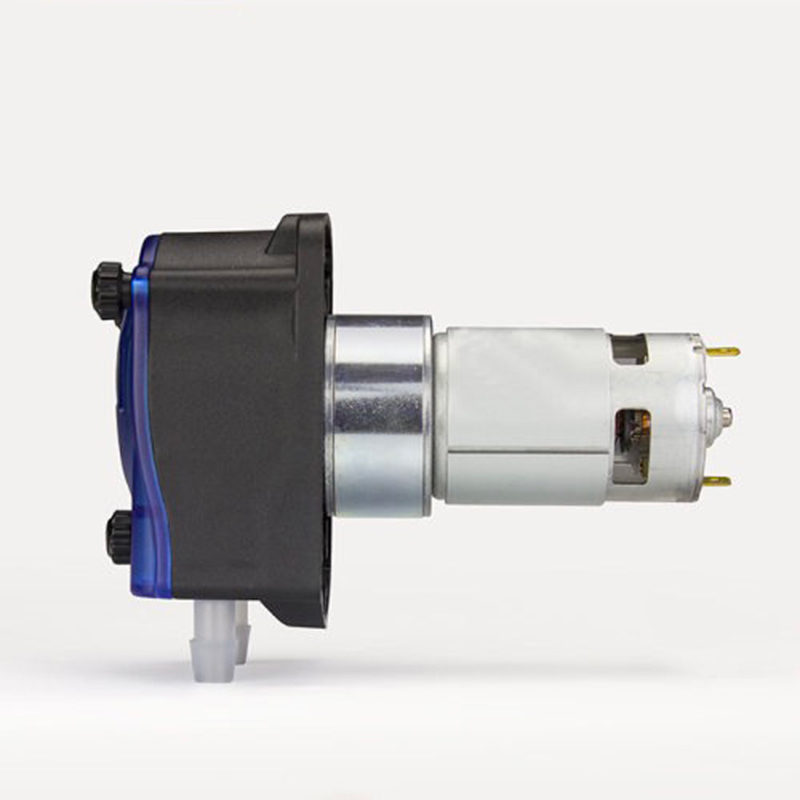

Model	683K/ZL(DC motor type)
Rated voltage	DC 12V,6A or 24V,3A
Power	≤24W（with silicone tube）, ≤48W(with norprene tube)
Operating environment	Temperature 0-60°C，relative humidity less than 85%
Net weight	715g
Output pressure	Norprene 26# tube≤0.27Mpa, Norprene 36# tube≤0.14Mpa,Silicone tube≤0.1Mpa,
Noise	≤63dB(testing environment noise≤50dB,the horizontal distance between the test product and the noise meter is 1 meter)
Function	Start/stop,cw/ccw rotation(change wiring),up/down speed(with DC driver)
Flow rate(ml/min,suction 0.8m,lift 0.4m)
Tube Voltage/RPM	Silicone tube		Norprene A-60-F tube
	26#	36#	26#	36#
166rpm	580	1080	565	975
326rpm	1035	1995	995	1770
507rpm	1755	3215	1640	2880

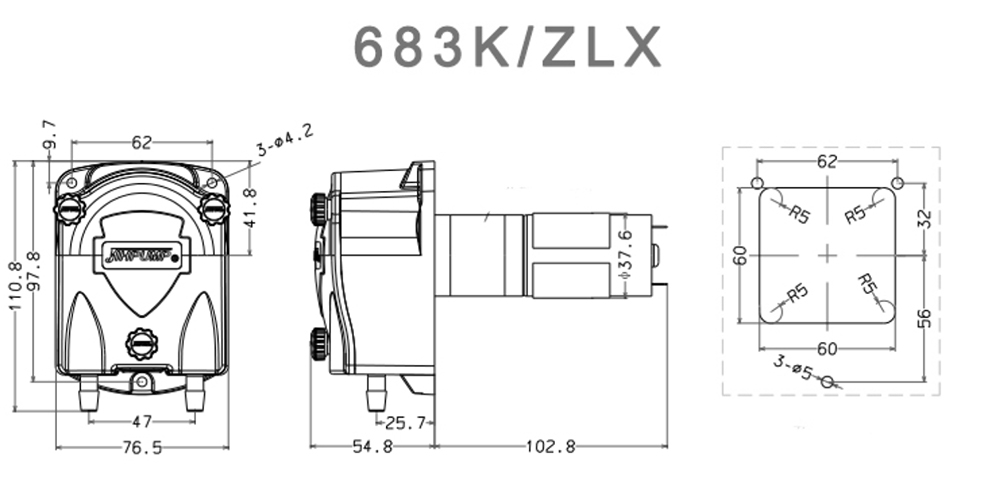

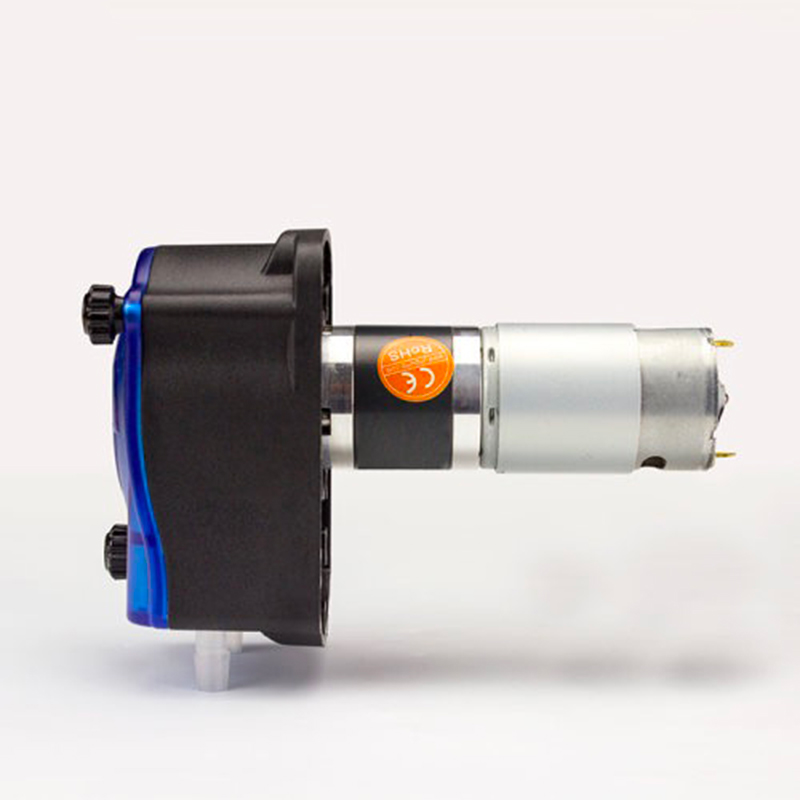

Model	683K/ZLX(DC planetary motor type)
Rated voltage	DC 24V,2A
Power	≤24W（with silicone tube）, ≤48W(with norprene tube)
Operating environment	Temperature 0-60°C，relative humidity less than 85%
Net weight	595g
Output pressure	Norprene 26# tube≤0.27Mpa, Norprene 36# tube≤0.14Mpa,Silicone tube≤0.1Mpa,
Noise	≤63dB(testing environment noise≤50dB,the horizontal distance between the test product and the noise meter is 1 meter)
Function	Start/stop,cw/ccw rotation(change wiring),up/down speed(with DC driver)
Flow rate(ml/min,suction 0.8m,lift 0.4m)
Tube Voltage/RPM	Silicone tube		Norprene A-60-F tube
	26#	36#	26#	36#
300rpm	985	1890	925	1640
