Micro Peristaltic Pump

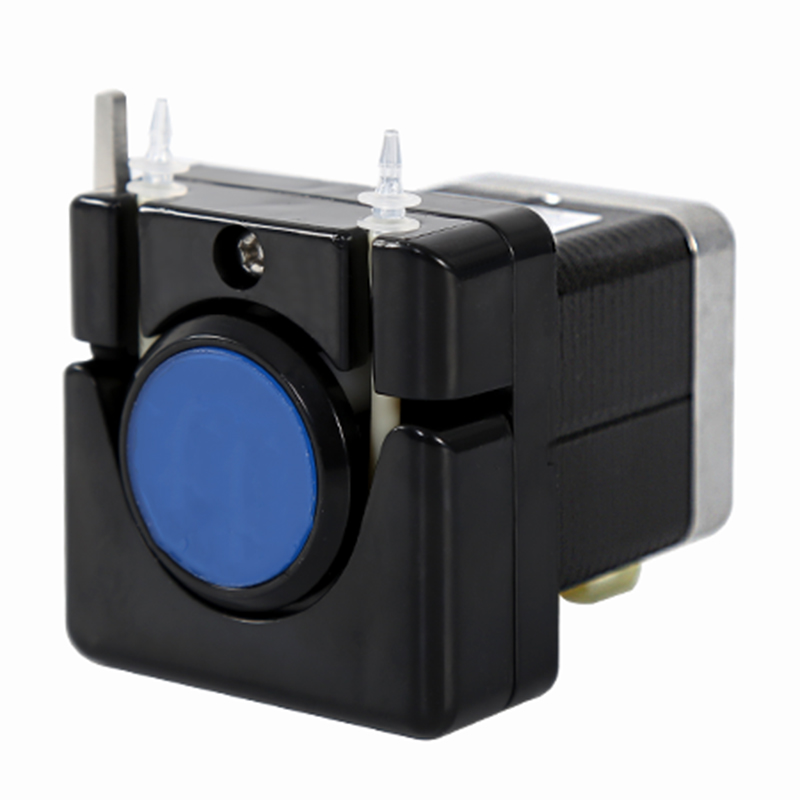

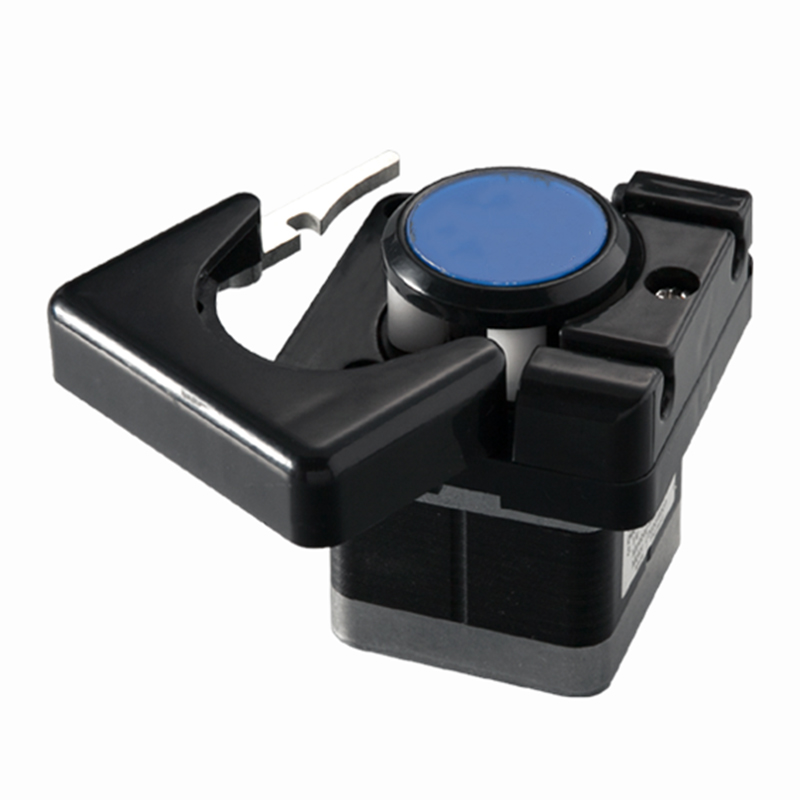

0~160ML/min Peristaltic Pump With 42 Stepper Motor Water Pump

0~160ML/min Peristaltic Pump With 42 Stepper Motor Water Pump

Model：1030-STEP
Voltage::24V
Flow rate:0-160ml/min
Motor:STEP motor
Product description: 0~160ML/min Peristaltic Pump With 42 Stepper Motor Water Pump
INQUIRY EMAIL

Product name: 0~160ML/min Peristaltic Pump With 42 Stepper Motor Water Pump

Product parameters:

Motor type: two-phase four-wire 42 stepper motor (driver drive, can not be directly driven by the power supply, customer configures driver according to your needs.)

Maximum power: 26.4W

Pipe size:ID（0.64-3mm) Wall（0.8-1mm)

Minimum flow rate: Determined by the speed of the stepper motor, the factors affecting the flow rate: pipe diameter and motor speed.

Stepper motor speed: <400rpm (The stepper motor speed is determined by the control circuit)

Maximum flow rate: 160ml/min

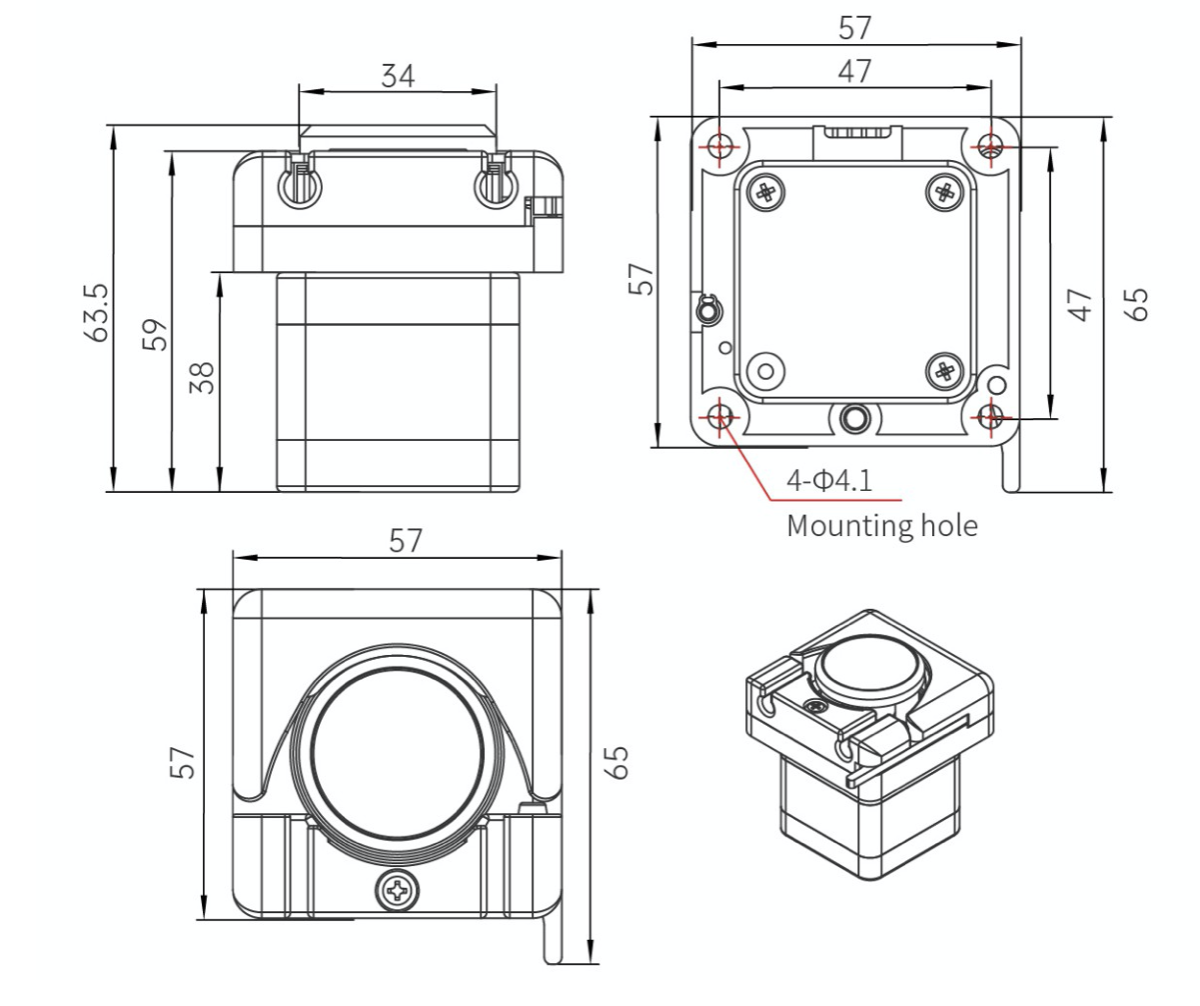

Size:57*63.5*65mm

Weight: 420g

Specification:

Model	1030-STEP
Motor	42 STEP Motor
Voltage	24V
Rated Current	1.1A
Rated Power	26.4W
Speed	≤400rpm
Flow Rate	0-160ml/min
Tube Size	ID（0.64-3mm) Wall Thickness（0.8-1mm)
Step Angle	1.8°
Phase	2
Phase Voltage	4.2V
Phase Current	1.1A
Resistance	3.8Ω±0.38
Inductance	5.2mH REF
Insulation	100mΩ MIN
Temperature	80°C MAX
Explosive-proof Grade	B
Drive Current	Less than1.5A
