400ml/min Small peristaltic pump large flow laboratory pump 24v dc small pump miniature self-priming pump

Product Details

Product Name：Micro Peristaltic Pump

Product Model：JWP52

Applications：

Detergent equipment : such as washing machine, dishwasher

Analytical instrument: analytical testing instrument sample

Printing equipment: ink

conveying machinery: such as beverage machine

Kitchen equipment  Laundry equipment  Car washing equipment  Analysis equipment

Product Features：

◆ Standard pump tube:ID6.4mm and OD 9.6mm; suitable for pump tube with wall thickness 1.6mm and outer diameter less than 9.6mm.

Pump tube materials are: silicone / corrosion-resistant composite rubber tube

◆ Reasonable flow rate: pump tube 6.4 * 9.6, flow rate per pump head: 1.5 ml, recommended speed is less than 400 rpm (short working time, sufficient heat dissipation, maximum speed can be designed to 500 rpm if necessary)

◆ Pump tube selection: Generally, the standard pump tube has 4.8 * 8 6.4 * 9.6 (4.8 * 8 specification tube, which can be replaced as required)

◆ Number of rollers: 3 rotor rollers

◆ Optional voltage: DC geared motor has 12V, 24V, stepping motor 6-30V is available

◆ Motor power: DC geared motor is about 10W, 42 stepper motor is about 30W,

◆ Product weight: about 92 grams of pump head, about 134 grams of DC geared motor, about 282 grams of 42 stepper motor,

◆ Shell material: PC plastic (polycarbonate)

◆ Roller material: POM plastic (polyformaldehyde)

◆ Motor selection: DC geared motor, 42 stepper motor, synchronous motor

◆ Pump cap is fixed with thumbscrews, convenient for disassembly, quick replacement of pump tube

◆ The first pump tube guide groove to prevent the pump tube from running away and causing damage

◆ Round frame adopts ball bearing, quiet and long life

◆ Hand screws are made of stainless steel, anti-rust and anti-corrosion

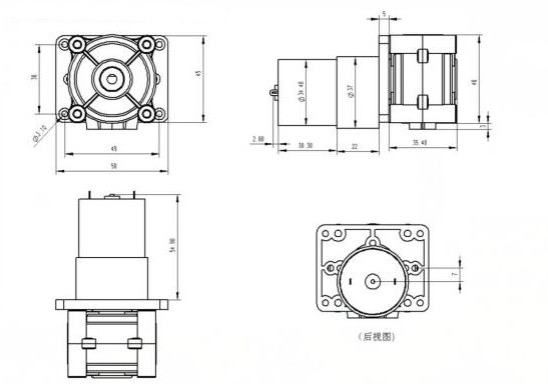

Installing drawing：(Units mm)
