L03

  • 1L/min Miniature Diaphragm Pump DC Air Pump Long Life Brushless DC 300ml/min Water Pumping Pump Negative Pressure Pump Small Vacuum Pump
  • 1L/min Miniature Diaphragm Pump DC Air Pump Long Life Brushless DC 300ml/min Water Pumping Pump Negative Pressure Pump Small Vacuum Pump
  • 1L/min Miniature Diaphragm Pump DC Air Pump Long Life Brushless DC 300ml/min Water Pumping Pump Negative Pressure Pump Small Vacuum Pump
  • 1L/min Miniature Diaphragm Pump DC Air Pump Long Life Brushless DC 300ml/min Water Pumping Pump Negative Pressure Pump Small Vacuum Pump
1L/min Miniature Diaphragm Pump DC Air Pump Long Life Brushless DC 300ml/min Water Pumping Pump Negative Pressure Pump Small Vacuum Pump1L/min Miniature Diaphragm Pump DC Air Pump Long Life Brushless DC 300ml/min Water Pumping Pump Negative Pressure Pump Small Vacuum Pump1L/min Miniature Diaphragm Pump DC Air Pump Long Life Brushless DC 300ml/min Water Pumping Pump Negative Pressure Pump Small Vacuum Pump1L/min Miniature Diaphragm Pump DC Air Pump Long Life Brushless DC 300ml/min Water Pumping Pump Negative Pressure Pump Small Vacuum Pump

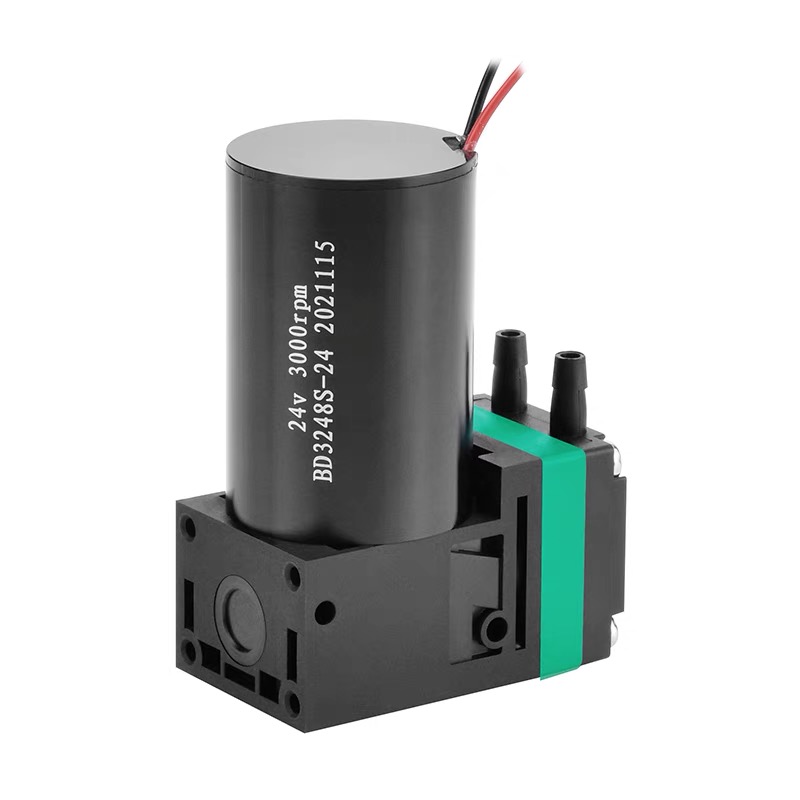

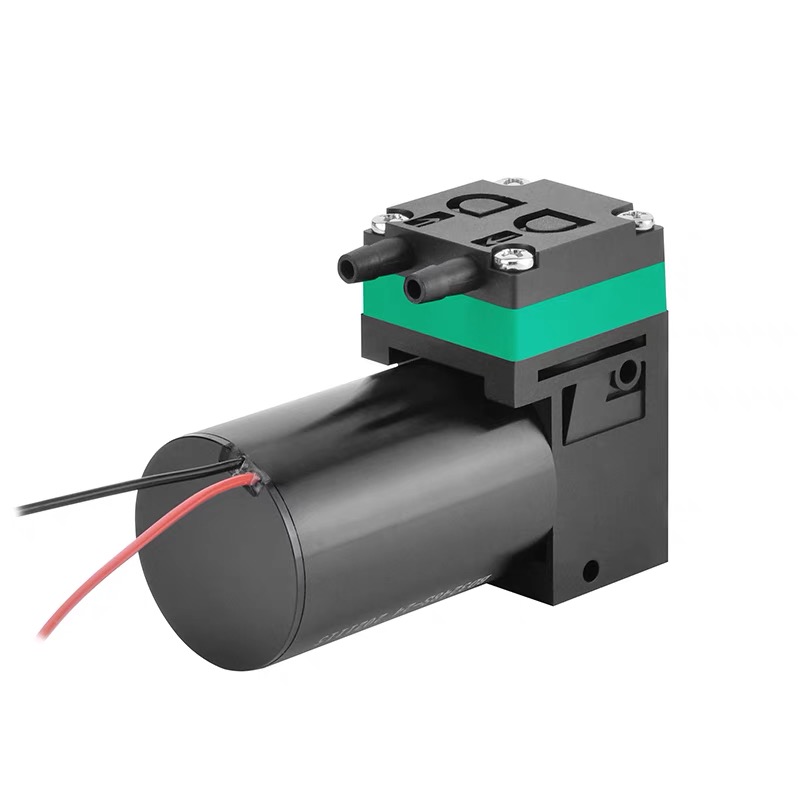

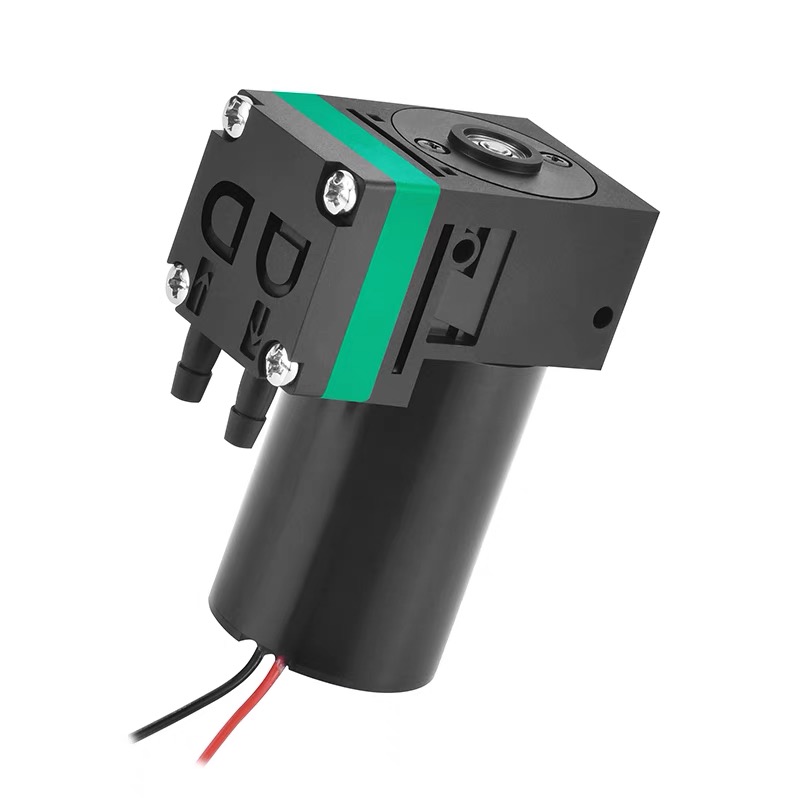

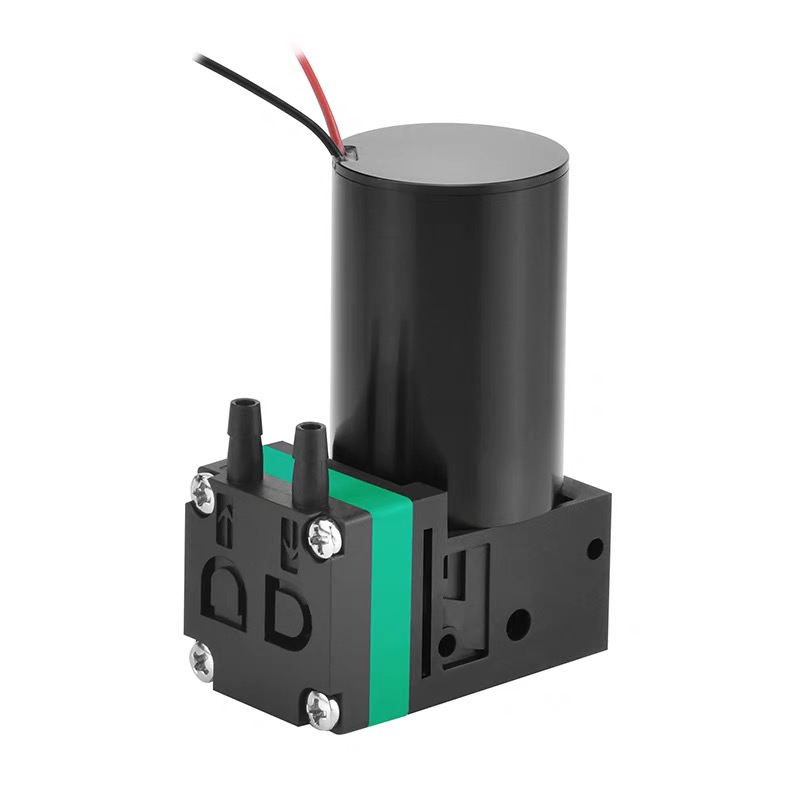

1L/min Miniature Diaphragm Pump DC Air Pump Long Life Brushless DC 300ml/min Water Pumping Pump Negative Pressure Pump Small Vacuum Pump

  • Air flow:1L/min
  • Liquid flow: 0.3L/min
  • Motor type: BLDC
  • Voltage: 12V/24V
  • Product description: L03 micro diaphragm pump is simply designed according to the principle of volume pump. It is to control the inlet and exit of the diaphragm, forming a power-driven rear drive mechanism to promote the
  • INQUIRY   EMAIL

Product Details

Product Name:micro diaphragm pump

Product Model:L03BL Series

Applications:

Medical usage:For liquid transfer,sampling,dispensing

Factory usage:For liquid dispensing

Environmental usage:For transferring and sampling sewage

Chemical engineering usage:Sample analysis,dispensing liquid

Ink Printer:For transferring ink,cleaning pipe line

Laboratory usage:For liquid transfer,sampling

Product features:

1.Maintenance-free ,Stable and adjustable speed   2.Accurate repeatability

3.Dry-running,self-priming                                   4.Long lifetime , well sealed

Datasheet:

Air parameter

Model

Air flow

Negative pressure

Positive pressure

Motor

Voltage

L03BL1255

L03BL2455


1L/min

-0.055MPa

0.09MPa

BLDC

12V, 24V

Liquid parameter

Model

Liquid flow

Suction head

Pressure head

Motor

Voltage

L03BL1255

L03BL2455


300ml/min

5m

10m

BLDC

12V, 24V

Motor

Brushless DC (BLDC)

Temp

50℃

Noise level

<50dB

Motor life

8000hrs

Power

5W

Relative humidity

<95%

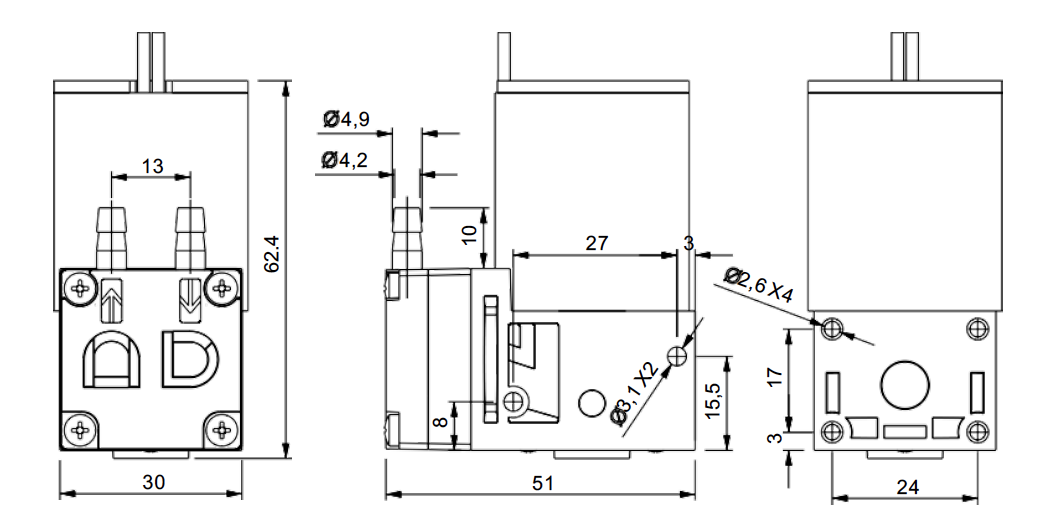

Installing drawing:Unit(mm)
