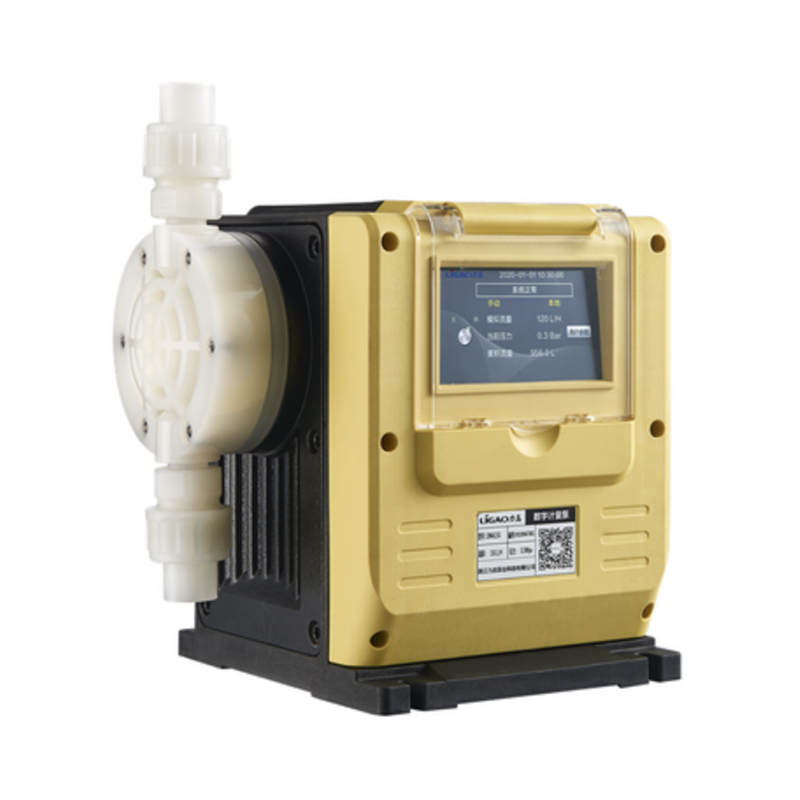

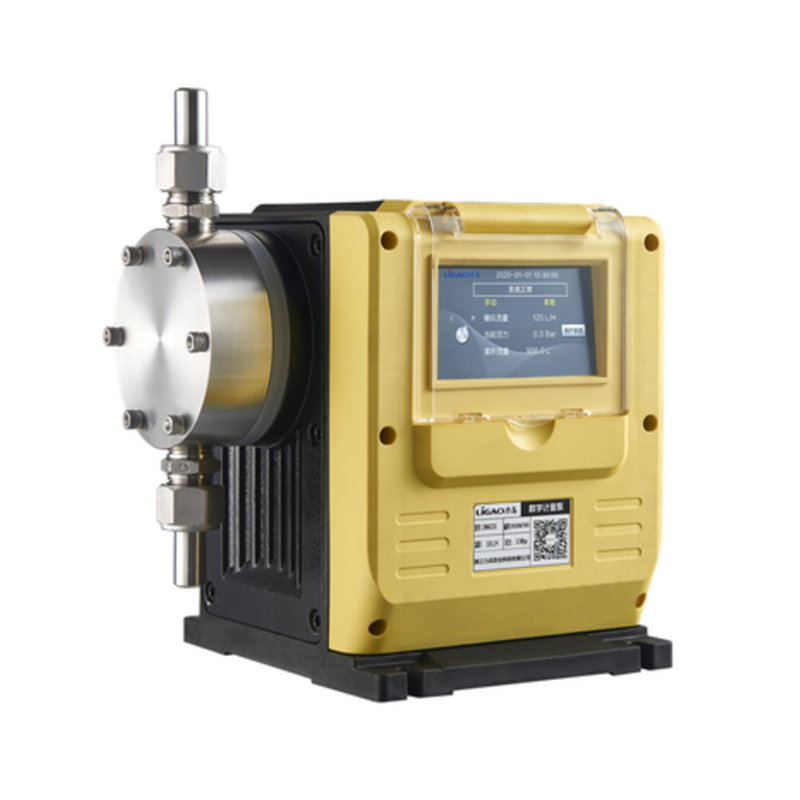

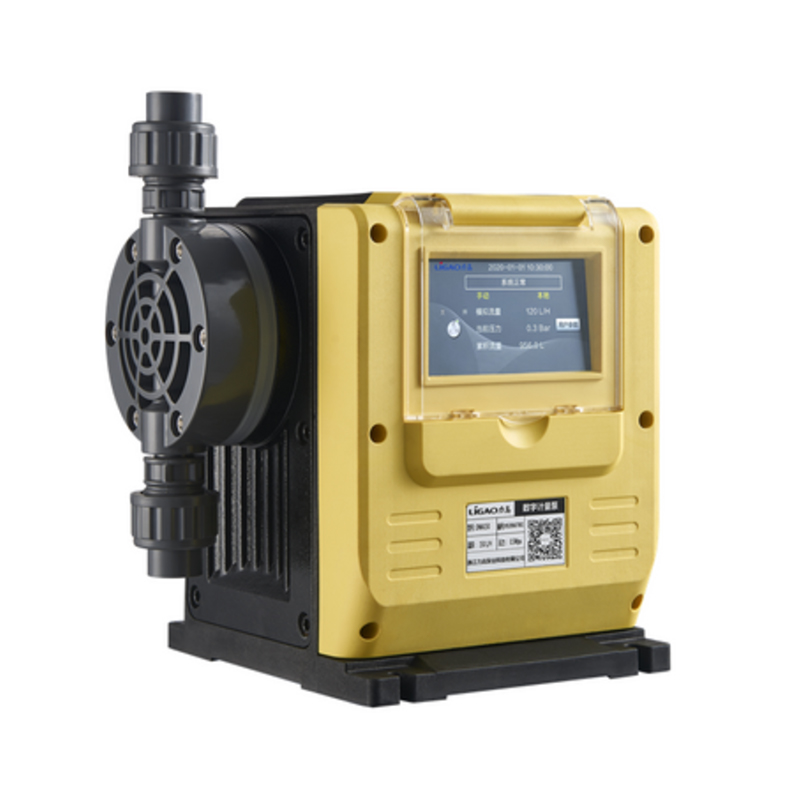

7.5-150L/H DMA Series Mechinal Solenoid Metering Pump Stepper Motor

  • Model:DMA
  • Flow Range:7.5-150L/H
  • Pressure Range:5-12bars
  • Power:Electric
  • Product description: 7.5-150L/H DMA Series Mechinal Solenoid Metering Pump Stepper Motor
  • INQUIRY   EMAIL

Product Details

Product Name:Metering pump

Product Model:DMA Series

Applications:

Portable water treatment:Metering of disinfectants

Cooling circuits:Metering of corrosion inhibitors and biocides

Environmental usage:Waste water treatment, metering of flocculants

Paper industry:Metering of additives

Plastic production:Metering of additives

Material Construction:

Material

PVC

PVDF

SS316

Diaphragm

PTFE

PTFE

PTFE

Valve Body

PVC

PVDF

SS316

Valve Ball

Ceramic

Ceramic

Ceramic

Valve Seat

PTFE

PTFE

SS316

O Ring

Viton

Viton

PTFE

Parameters:

Model

DMA

Mechanical Parameter

Max Flow@Pressure

L/H@Bar

150L/h @ 5Bar

Max Pressure

Bar

15Bar

Inlet and Outlet Diameter

        Φ6*9mm hose &            1/2 F Thread&Union

Material

PVDF/SS316

Diaphragm Material

PTFE

Max Suction Height on Working

m

6

Max Suction Height

M

2

Max Viscosity @50% Low Speed

mPa.s

1800

Max Viscosity @25% Low Speed

mPa.s

2000

Liquid Temperature Range

ºC

-10 to 80

Ambient Temperature Range

ºC

0 to 45

Repeatability Accuracy

%

±1

Electrical Parameter

Power Supply

VAC

220V50/60Hz

Rated Power

W

80

Cable Plug Type

Aviation Plug*2

Protection Class

IP65

Control Parameter

Adjust Analog Input and Output

4-20mA

Pulse Signal Adjustment Range

999:1 – 1:999

External Start-stop Control

Yes

Level Indicator

4-20mA

Low Level Stop Pump,Alarm

Yes

Timing and Quantitatibe Dosing

Yes

Pressure Indicator

4-20mA
