Centrifugal Pump

  • 3.2-50m³/h S Type Glass Steel Pump for Sulfuric Acid or Chemical Fertilizer Centrifugal Pump
  • 3.2-50m³/h S Type Glass Steel Pump for Sulfuric Acid or Chemical Fertilizer Centrifugal Pump
  • 3.2-50m³/h S Type Glass Steel Pump for Sulfuric Acid or Chemical Fertilizer Centrifugal Pump
3.2-50m³/h S Type Glass Steel Pump for Sulfuric Acid or Chemical Fertilizer Centrifugal Pump 3.2-50m³/h S Type Glass Steel Pump for Sulfuric Acid or Chemical Fertilizer Centrifugal Pump 3.2-50m³/h S Type Glass Steel Pump for Sulfuric Acid or Chemical Fertilizer Centrifugal Pump

3.2-50m³/h S Type Glass Steel Pump for Sulfuric Acid or Chemical Fertilizer Centrifugal Pump

  • Inlet Dia.(mm):25-80
  • Outlet Dia.(mm):25-65
  • Flow(m3/h):3.2-50
  • Shaft Power(KW):0.55-22
  • Product description: S Type Glass Steel Pump for Sulfuric Acid or Chemical Fertilizer Centrifugal Pump
  • INQUIRY   EMAIL

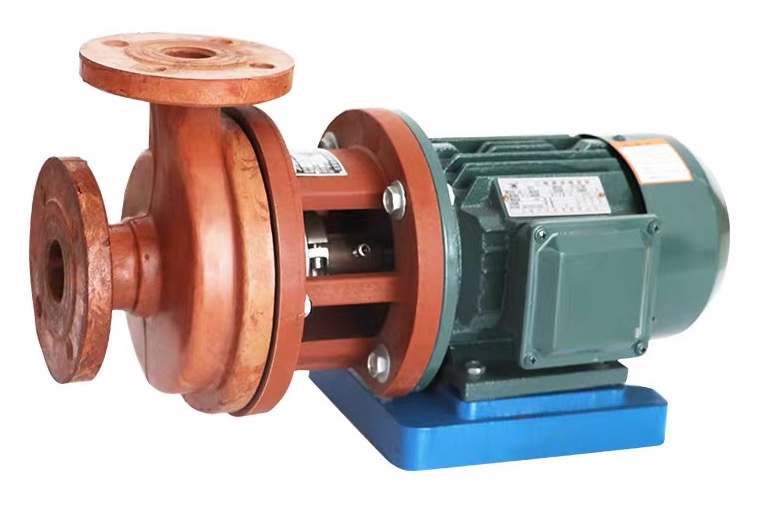

S Type Glass Steel Pump for Sulfuric Acid or Chemical Fertilizer Centrifugal Pump

Centrifugal pump is designed according to the principle of centrifugal force. The impeller blades rotating at high speed drive the water to rotate and throw the water out, thus achieving the purpose of transportation. There are many kinds of centrifugal pumps,which can be divided into civil and industrial pumps. From the transport medium can be divided into clean water pump, impurity pump, corrosion resistant pump, etc.

Inlet Dia.(mm)

25-65

Outlet Dia.(mm)

25-80

Flow(m3/h)

3.2-50

Speed(rpm)

2900

NPSHm

4

Efficiency

41%-69%

Shaft Power(KW)

0.75-22

Shaft seal

Mechanical seal











Type

Inlet

Outlet

Flow(m3/h)

Head(m)

Speed(r/min)

Power(kw)

S25x25-12.5

25

25

3.2

12.5

2900

0.75

S40x32-20

40

32

6.3

20

2900

1.1

S40x32-32

40

32

6.3

32

2900

2.2

S50x40-20

50

40

12.5

20

2900

2.2

S50x32-32

50

32

12.5

32

2900

4.0

S65x50-20

65

50

25

20

2900

3.0

S65x50-32

65

50

25

32

2900

5.5

S80x65-32

80

65

50

32

2900

7.5/11

S80x65-40

80

65

50

40

2900

7.5/11

S100x80-50

100

80

100

50

2900

22/30

S100x80-28

100

80

100

28

2900

15

S100x80-32

100

80

100

32

2900

15

S100x80-40

100

80

100

40

2900

18.5
