Motor

AC servo motor 40/60/80/110/130/180mm

AC Voltage: 208-230 / 240 V
Insulation class: ClassB
Speed: 1500-3000RPM
Power: 200W-5.5KW
Product description: AC servo motor 40/60/80/110/130/180mm
INQUIRY EMAIL

40-180mm Series AC Servo Motor:

Advantages：

1. Low noise and long life

2.Efficient and energy saving

3.Wide range of uses : For Engarving/Packing/cutting /dril machine , CNC lathe /milling

4. Various types : Encoder 2500PPR / 5000PPR /17BITS /23BIT

5. Communication type: Standard is RS 485 , We can customized for CANOPEN , ETHERCAT . ETHERNET

6.Control type : Standard is Position control (Pulse &direction)

customized Position +Analog (torque &speed ) control

7. power range : 100W to 5.5KW

8. 40mm /60mm /80mm size motor have high inertia type , which is max speed 5000RPM type and max 3600rpm type for selection !!! (standard is max 5000rpm type )

9. Voltage : standard is AC 220V +_10%, we also supply AC 380V type motor

IF need more information , pls do not hesitate to Email me !

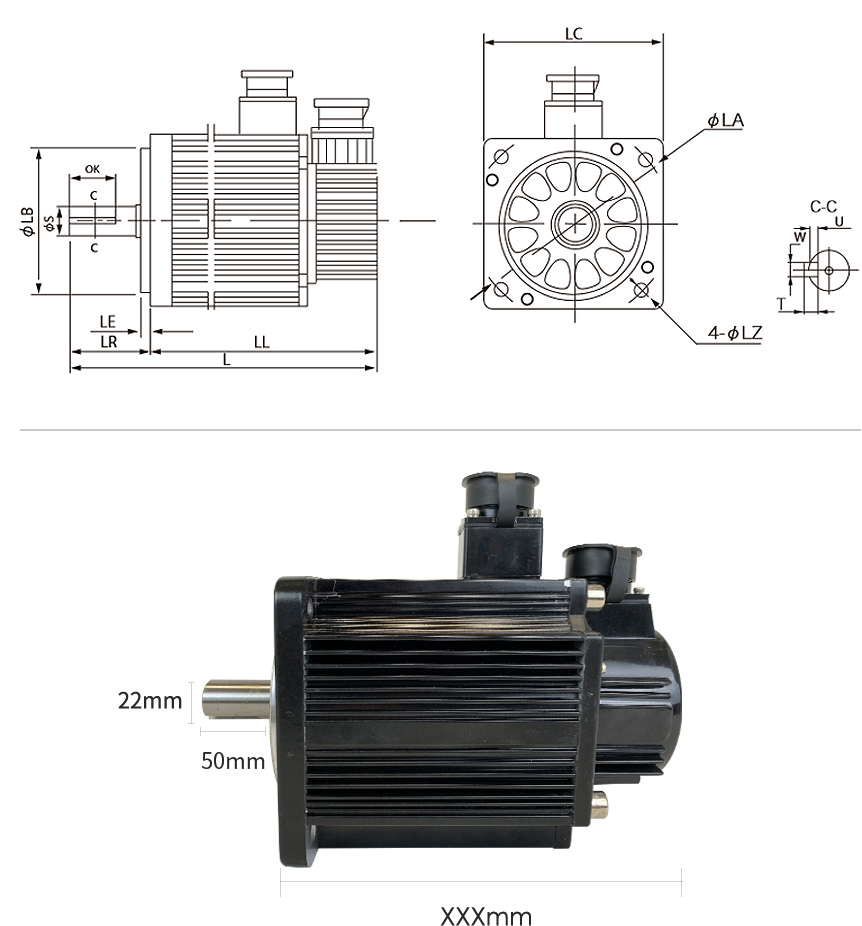

Model	Size													Weight (Kg)	Rated power (W)	Torque （N.m）	Speed (Rpm)
Model	L	L L	LR	LA	LB	S	LC	LE	LZ	OK	W	T	U	Weight (Kg)	Rated power (W)	Torque （N.m）	Speed (Rpm)
130Sm04030	218	170	58	145	110	22	130	6	9	30	6	6	3	13	1200	4	3000
130Sm06025	238	190	56	145	110	22	130	6	9	30	6	6	3	8.2	1500	6	2500
130Sm10015	268	220	56	145	110	22	130	6	9	30	6	6	3	10.6	1500	10	1500
110Sm04030	238	185	52	130	95	19	110	5	10	30	6	6	3	6.2	1200	4	3000
110Sm05020	253	200	52	130	95	19	110	5	10	30	6	6	3	6.5	1000	5	2000
110Sm06025	273	220	52	130	95	19	110	5	10	30	6	6	3	8.2	1500	6	2500
80Sm013030	178	148	36	90	70	19	80	3	6	30	6	6	3	2.6	400	1.3	3000
80Sm024030	210	180	36	90	70	19	80	3	6	30	6	6	3	3.5	750	2.4	3000
60Sm00630	135	105	30	70	50	14	60	3	5.5	20	5	5	3	1.2	200	15	1000
60Sm013030	165	135	30	70	50	14	60	3	5.5	20	5	5	3	1.5	400	15	1500
130Sm15025	296	248	56	145	110	22	130	6	9	30	6	6	3	10.6	3800	15	2500
Note：	Motor can be customized according to your requirements!
